MCDD Series

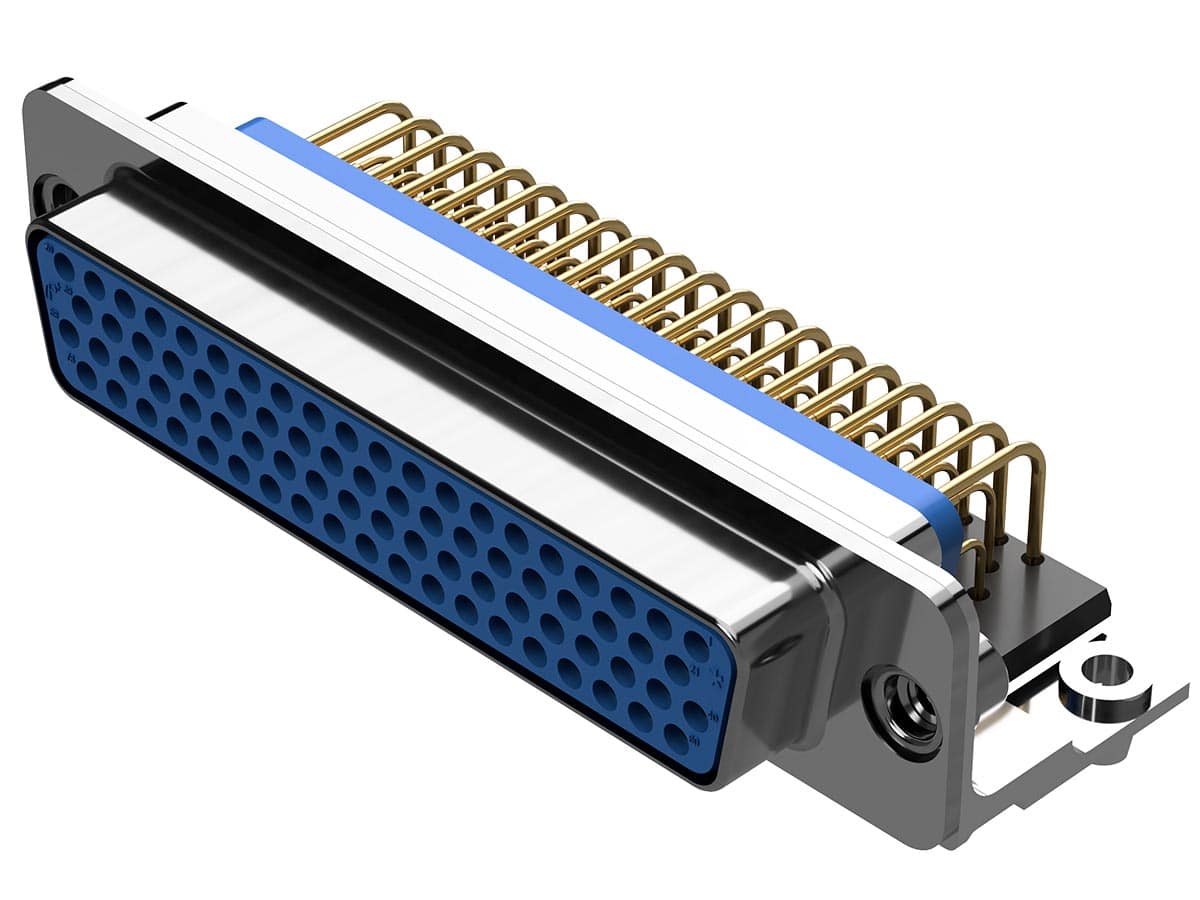

The MCDD Series is a part of the MACH-D family of D-Sub connectors with size 22 machined contacts. MCDD Series connectors offer machined shells with wire, right angle solder, or straight solder termination options. All MACH-D products conform to the quality and performance standards of MIL-DTL-24308.

Loading...

Your Part Number

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	MCDD
Performance Level	Mil/Aero & Spaceflight
Qualifications	Meets or exceeds performance requirements of MIL-DTL-24308 and NASA Goddard GSFC-311
RoHS Compliance	Optional

Materials
Insulator Material	PBT
Insulator Color	Blue (PBT)
Contact Material	Copper Alloy
Contact Plating	50 μin gold over nickel or copper underplate
Shell Material	Aluminum, Stainless steel
Shell Finish	Gold Electroless nickel / Stainless steel, passivated / Cadmium / Chemical conversion coating

Electrical
Insulator Resistance (GΩ)	5
Proof Voltage (V rms)	1000
Working Voltage (V rms)	300
Initial Contact Resistance (mΩ, max)	5
Contact Current Rating (A)	Up to 12A

Mechanical
Shape	Rectangular
Body Style	Free cable, Panel mount
Insulator Construction	One-piece
Polarization Method	Trapezoidal shape of shell
Locking System	Optional
Contact Style	Fixed, Removable
Contact Size	#22
Female Contact Design	PosiBand closed entry
Contact Retention Mechanism	Press-in
Contact Retention (N)	40N [9 lbs] (removable contacts only)
Contact Termination	Wire, PCB
Mating Cycles	500

Environmental
Temperature Range (ºC)	-55 to 125ºC
Waterproof	IP67 (when ordered with the IP-rated panel mount accessories)

MACH-D Catalog
Revision: Rev.A2
High-performance machined shell d-sub connectors for use in harsh environments
ELECTROMAGNETICALLY COMPATIBLE MACHINED LOW-PROFILE BACKSHELLS
Revision: NC
Low profile, machined aluminum backshells with EMI protection for d-sub connectors, including Mach-D
