Part Number Prefix	MIP
Performance Level	Industrial
Qualifications	UL #E49351, CSA #LR54219
RoHS Compliance	RoHS 5/6 (6/6 on select parts)

Materials
Insulator Material	Polyester
Insulator Color	Blue
Flammability Rating	UL 94V-0
Contact Plating	Gold flash, 0.76µm Au, 1.27µm Au
Shell Material	N/A

Electrical
Insulator Resistance (GΩ)	5.0
Proof Voltage (V rms)	2000
Working Voltage (V rms)	600
Initial Contact Resistance (mΩ, max)	0.5
Contact Current Rating (A)	60

Mechanical
Shape	Rectangular
Body Style	Panel mount
Insulator Construction	One-piece
Polarization Method	Insulator keyway
Locking System	N/A
Blind Mating	1
Clearance and Creepage (mm min)	Contact technical sales
Contact Style	Fixed, Removable
Contact Size	#20, #16, #12, #8
Female Contact Design	Open entry, Closed entry
Contact Retention Mechanism	Metal clip, Press-in
Contact Retention (N)	44 to 67
Contact Termination	Wire, PCB
Mating Cycles	250

Environmental
Temperature Range (ºC)	-55 to 125

Medical
Revision: NC
Connector product comparison, features, and benefits for use in Medical
产品选择指南
Revision: NC (Chinese version)

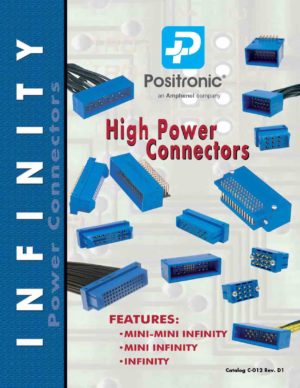

Infinity Catalog
