Your Part Number

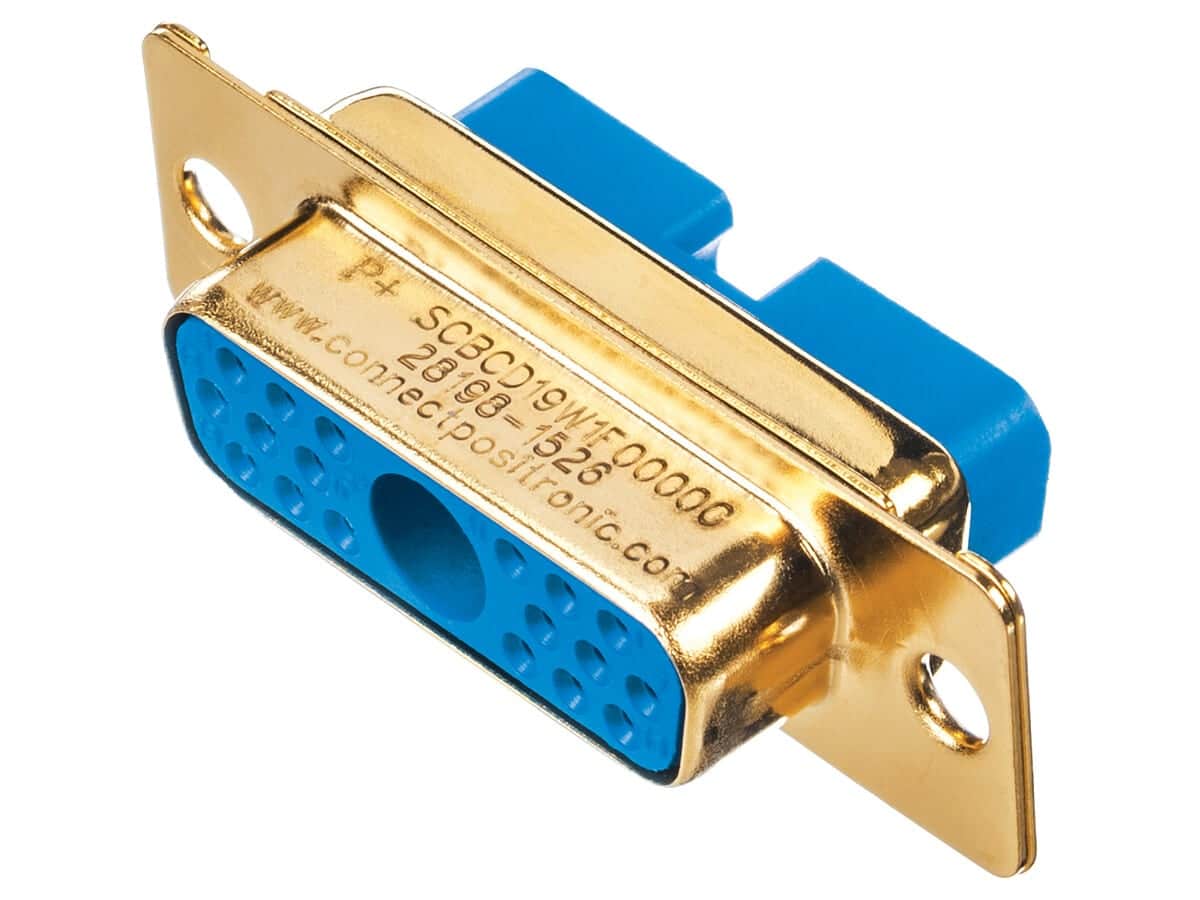

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	SCBCD
Performance Level	Spaceflight
Qualifications	GSFC S-311
RoHS Compliance	RoHS 5/6 (6/6 on select parts)

Materials
Insulator Material	Polyester
Insulator Color	Blue
Flammability Rating	UL 94V-0
Contact Material	Copper Alloy
Contact Plating	1.27µm Au (min)
Shell Material	Brass

Electrical
Insulator Resistance (GΩ)	5.0
Proof Voltage (V rms)	1000
Working Voltage (V rms)	300
Initial Contact Resistance (mΩ, max)	0.5
Contact Current Rating (A)	50

Mechanical
Shape	Rectangular
Body Style	Free cable, Panel mount
Insulator Construction	Two-piece
Polarization Method	Trapezoidal shape
Locking System	Optional
Clearance and Creepage (mm min)	1.00
Contact Style	Removable
Contact Size	#22, #16
Female Contact Design	Closed entry
Contact Retention Mechanism	Metal clip
Contact Retention (N)	40 to 98
Contact Termination	Wire
Mating Cycles	1000

Environmental
Temperature Range (ºC)	-55 to 125
