PCIH Series

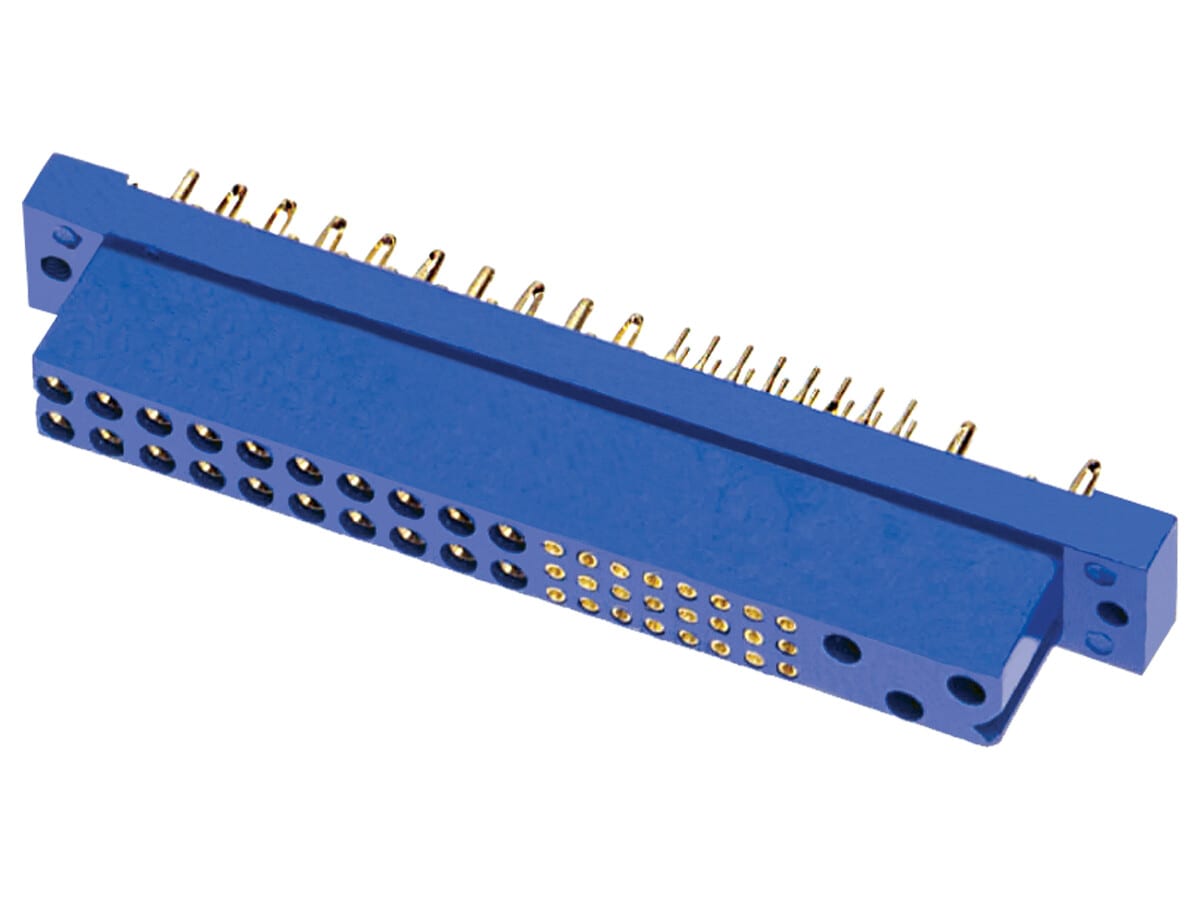

The PCIH series is a part of the Compact Power family featuring Plug-in power interface for CompactPCI and other platforms. PCIH series are 91mm (female) CompactPCI connectors

Your Part Number

Total length: 0mm Image shown is face view of male connector

General

Part Number PrefixPCIH
Performance LevelIndustrial
QualificationsUL #E49351
CSA #LR54219
RoHS ComplianceRoHS 5/6 (6/6 on select parts)

Materials

Insulator MaterialPolyester
Insulator ColorBlue
Flammability RatingUL 94V-0
Contact MaterialCopper Alloy
Contact PlatingGold flash
30µ Au (min)
50µ Au (min)
Shell MaterialN/A

Electrical

Insulator Resistance (GΩ)5.0
Proof Voltage (V rms)1000 to 3000
Working Voltage (V rms)1000
Initial Contact Resistance (mΩ, max)0.7
Contact Current Rating (A)40

Environmental

Temperature Range (ºC)-55 to 125

Mechanical

ShapeRectangular
Body StyleFree cable
Panel mount
Insulator ConstructionOne-piece
Polarization MethodInsulator keyway
Locking SystemN/A
Clearance and Creepage (mm min)2.00 to 6.40
Contact StyleFixed
Removable
Contact Size#22
#16
Female Contact DesignOpen entry
Closed entry
Contact Retention MechanismMetal clip
Press-in
Contact Retention (N)27 to 67
Contact TerminationWire
PCB
Mating Cycles250
