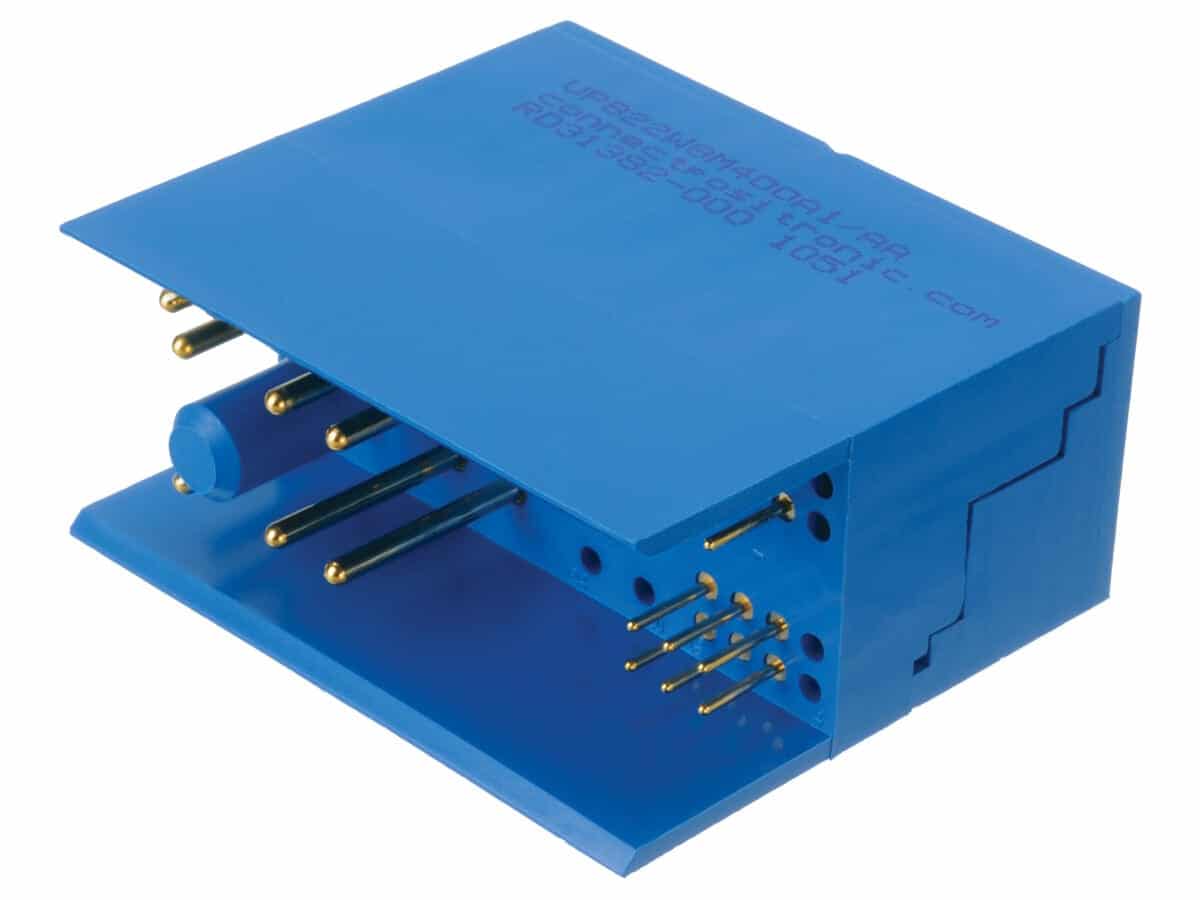

VPB Series
The VPB series is part of the AdvancedTCA family of PICMG 3.0 AdvancedTCA Zone 1 connectors. VPB series connectors offer PICMG 3.0 compliance.
General |
|
|---|---|
| Part Number Prefix | VPB |
| Performance Level | Industrial |
| Qualifications | UL #E49351 |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials |
|
|---|---|
| Insulator Material | Polyester |
| Insulator Color | Blue |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 to 2000 |
| Working Voltage (V rms) | 600 |
| Initial Contact Resistance (mΩ, max) | 1 |
| Contact Current Rating (A) | 30 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Panel mount |
| Insulator Construction | One-piece, Two-piece |
| Polarization Method | Insulator keyway |
| Locking System | N/A |
| Blind Mating | 1 |
| Clearance and Creepage (mm min) | 0.70 - 4.00 |
| Contact Style | Fixed |
| Contact Size | #22, #16 |
| Female Contact Design | Open entry, Closed entry |
| Contact Retention Mechanism | Press-in |
| Contact Retention (N) | 25 to 31 |
| Contact Termination | PCB |
| Mating Cycles | 250 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
