Your Part Number

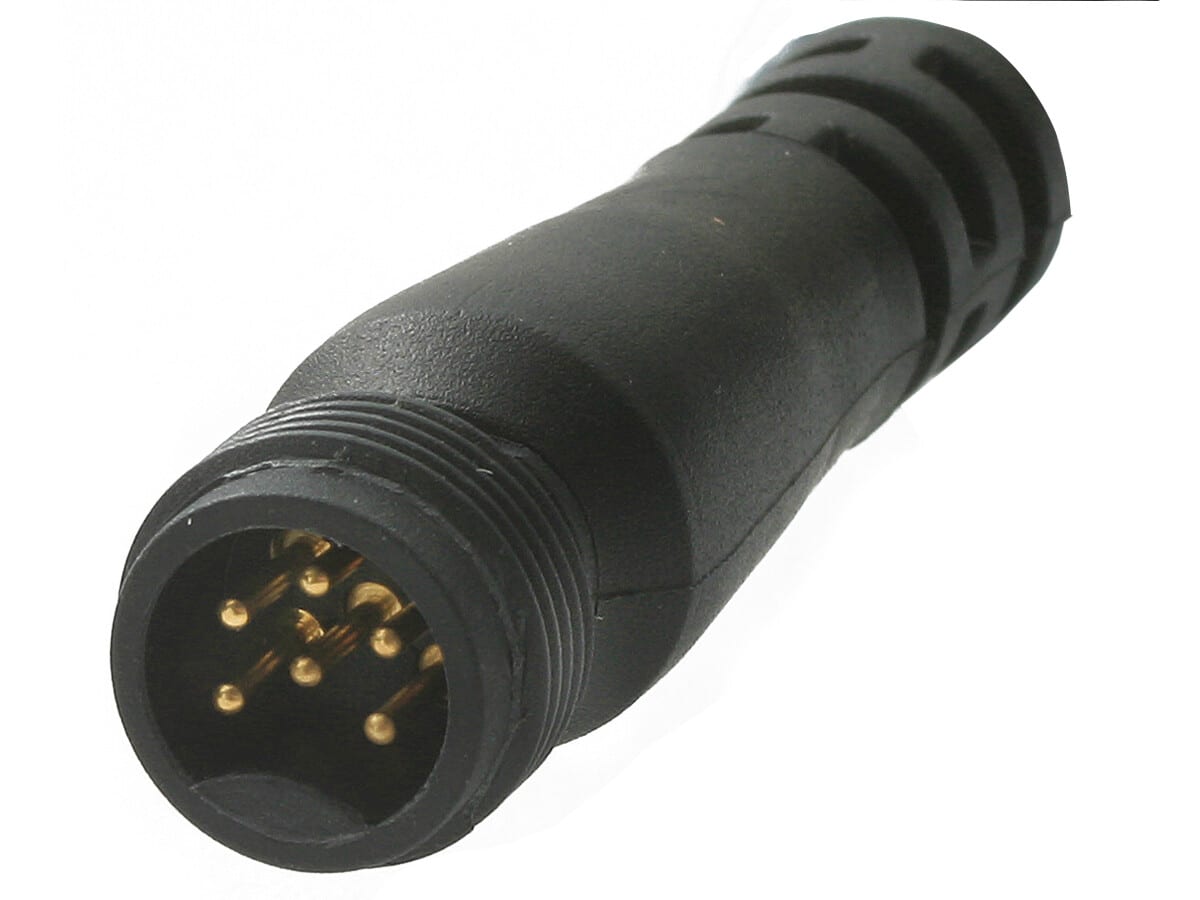

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	BKC
Performance Level	Industrial
Qualifications	UL #E220614
RoHS Compliance	RoHS 5/6

Materials
Insulator Material	Nylon
Insulator Color	Black
Flammability Rating	UL 94V-0
Contact Material	Copper Alloy
Contact Plating	Gold flash, 0.76µm Au, 1.27µm Au
Shell Material	N/A

Electrical
Insulator Resistance (GΩ)	5.0
Proof Voltage (V rms)	1000
Working Voltage (V rms)	250
Initial Contact Resistance (mΩ, max)	5
Contact Current Rating (A)	7.5

Mechanical
Shape	Circular

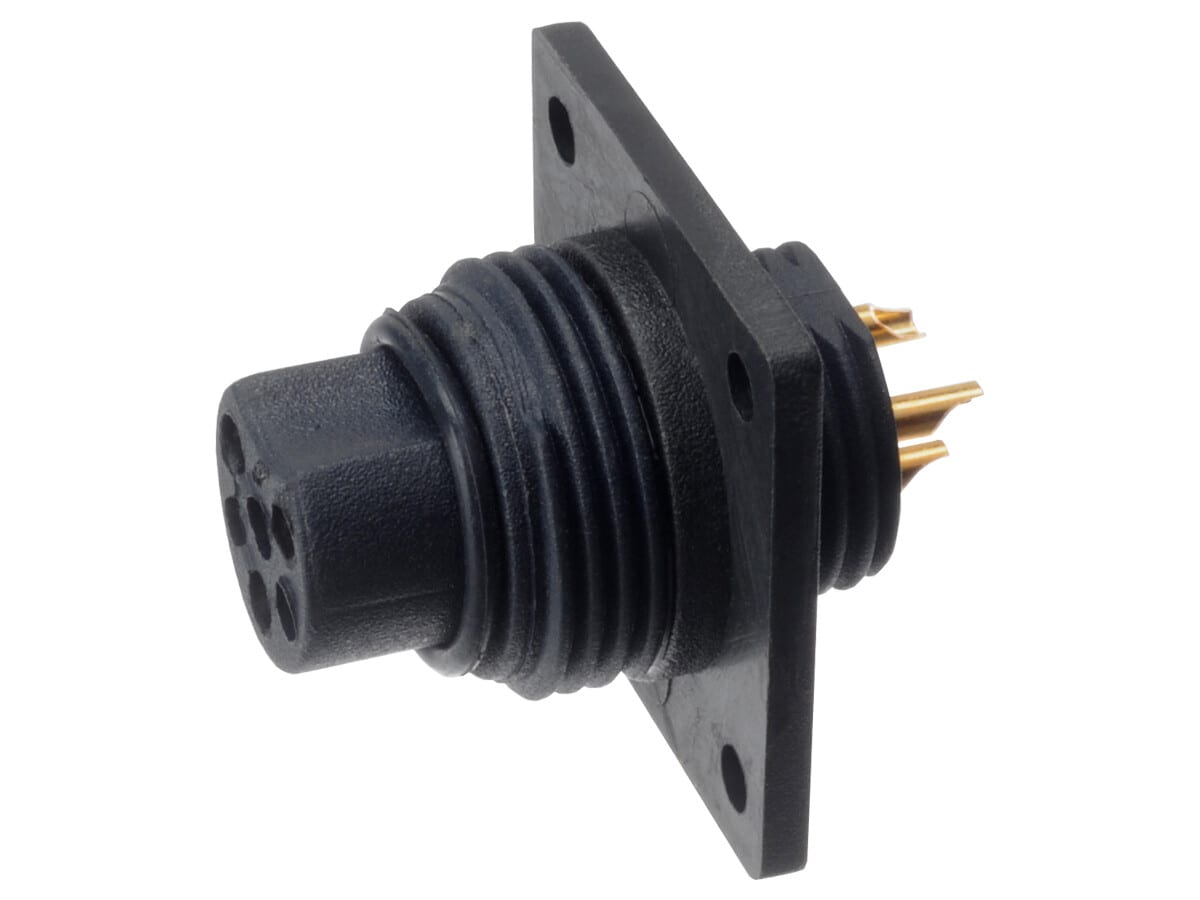

Body Style	Free cable, Panel mount
Insulator Construction	One-piece
Polarization Method	Insulator keyway
Locking System	Integrated
Clearance and Creepage (mm min)	0.80
Contact Style	Fixed
Contact Size	#20
Female Contact Design	Open entry
Contact Retention Mechanism	Press-in
Contact Retention (N)	27
Contact Termination	Wire
Mating Cycles	500

Environmental
Temperature Range (ºC)	-55 to 125
Waterproof	IP65
