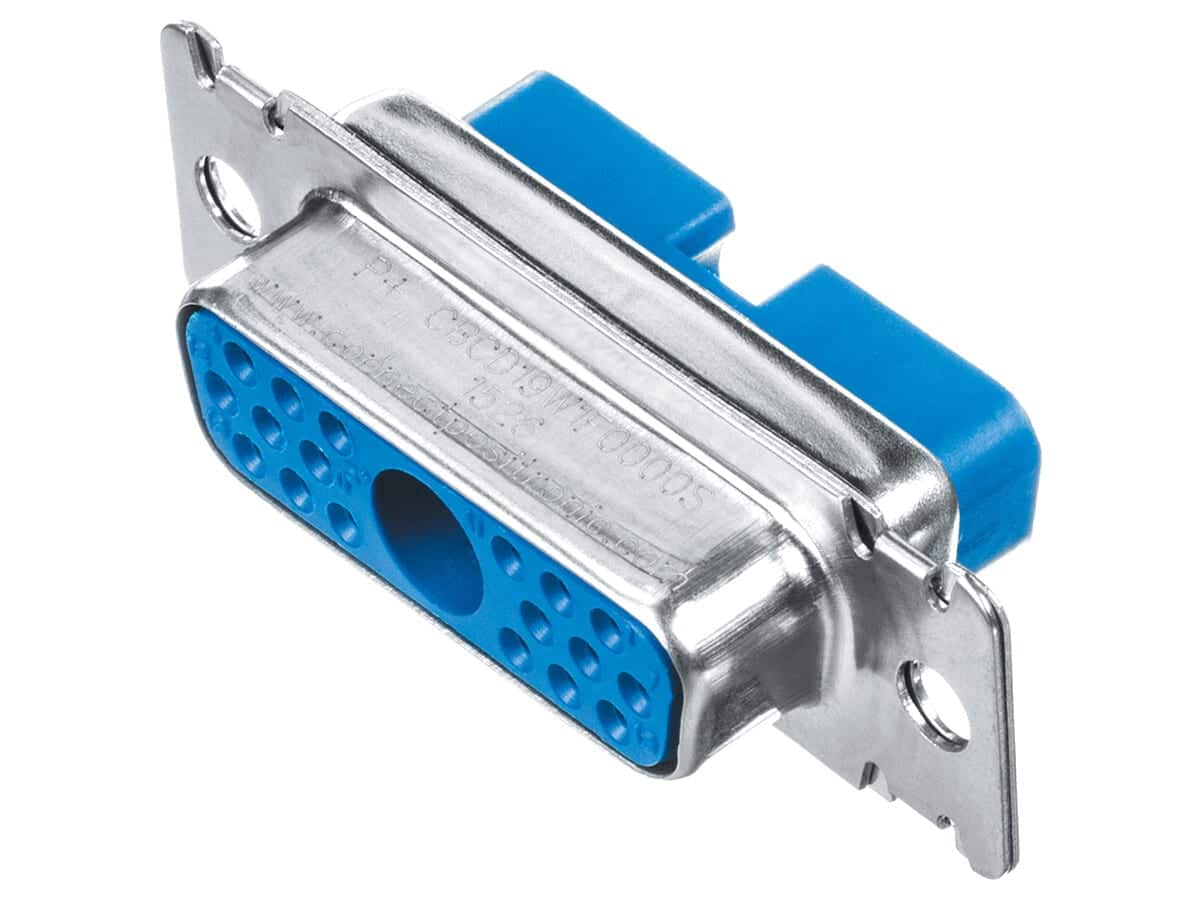

CBCD Series
The CBCD series is part of the Combo-D family mixed density D-sub to mix signal/power/coax/HV and fiber optic. CBCD series connectors offer crimp removable size 8 and 22 contacts with industrial and Mil/Aero performance options.
Your Part Number
General |
|
|---|---|
| Part Number Prefix | CBCD |
| Performance Level | Industrial, Mil/aero |
| Qualifications | UL, CSA |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials |
|
|---|---|
| Insulator Material | Polyester |
| Insulator Color | Blue |
| Flammability Rating | UL 94V-0 |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Steel, Stainless steel |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 |
| Working Voltage (V rms) | 300 |
| Initial Contact Resistance (mΩ, max) | 0.5 |
| Contact Current Rating (A) | 50 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Free cable, Panel mount |
| Insulator Construction | Two-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.06 |
| Contact Style | Removable |
| Contact Size | #22, #16 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 40 to 98 |
| Contact Termination | Wire |
| Mating Cycles | 1000 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
-
产品选择指南
Revision: NC (Chinese version) -
Combo-D Catalog
Revision: F8Mixed density D-sub to mix signal/power/coax/HV and fiber optic
-
D-Sub Series Selection Guide
Revision: M024 RevA1 23/05Simplify the d-sub selection process by comparing product features and market appropriateness
-
D-subminiature Accessories Catalog
Revision: Rev B4 25/05Backshells, jackscrews, mounting, IP sealing, and various other options for d-subminiature connectors
-
PRECISION MACHINED BANDED BACKSHELLS
Revision: Rev.A 25/02Precision machined lightweight aluminum two-piece banded backshells for d-sub connectors
(AP / AK / AW Series)
-
ELECTROMAGNETICALLY COMPATIBLE MACHINED LOW-PROFILE BACKSHELLS
Revision: Rev.APrecision machined lightweight aluminum low-profile banded backshells with tie wrap for d-sub connectors
(EL Series)
-
Zinc Die-Cast Backshells
Revision: NC 23/06Zinc die-cast backshells with top or side entry for d-sub connectors
(CT / CS / DT / DS Series)
-

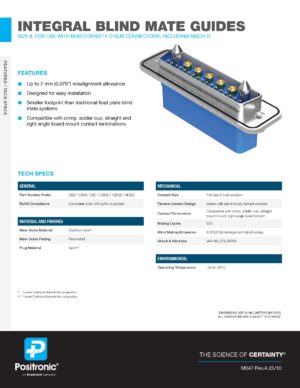

INTEGRAL BLIND MATE GUIDES
