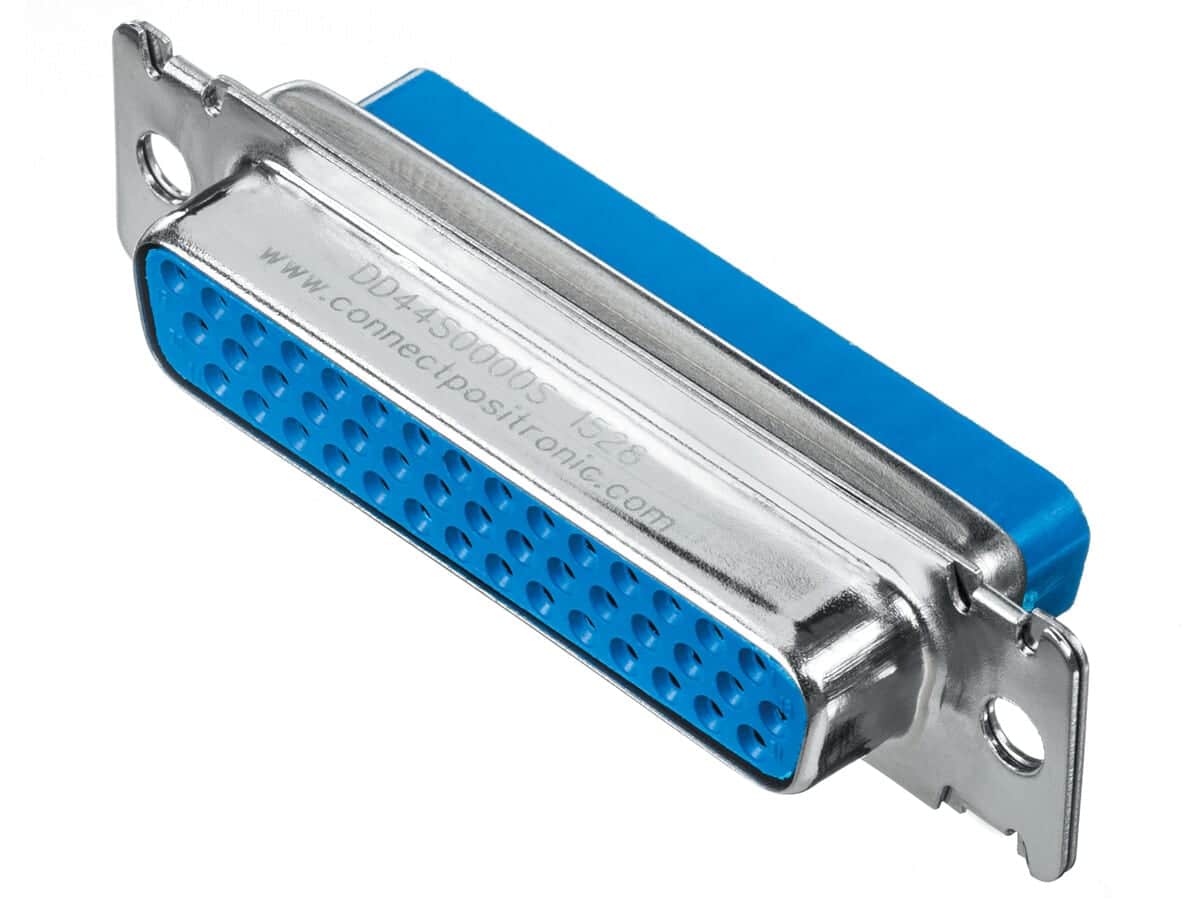

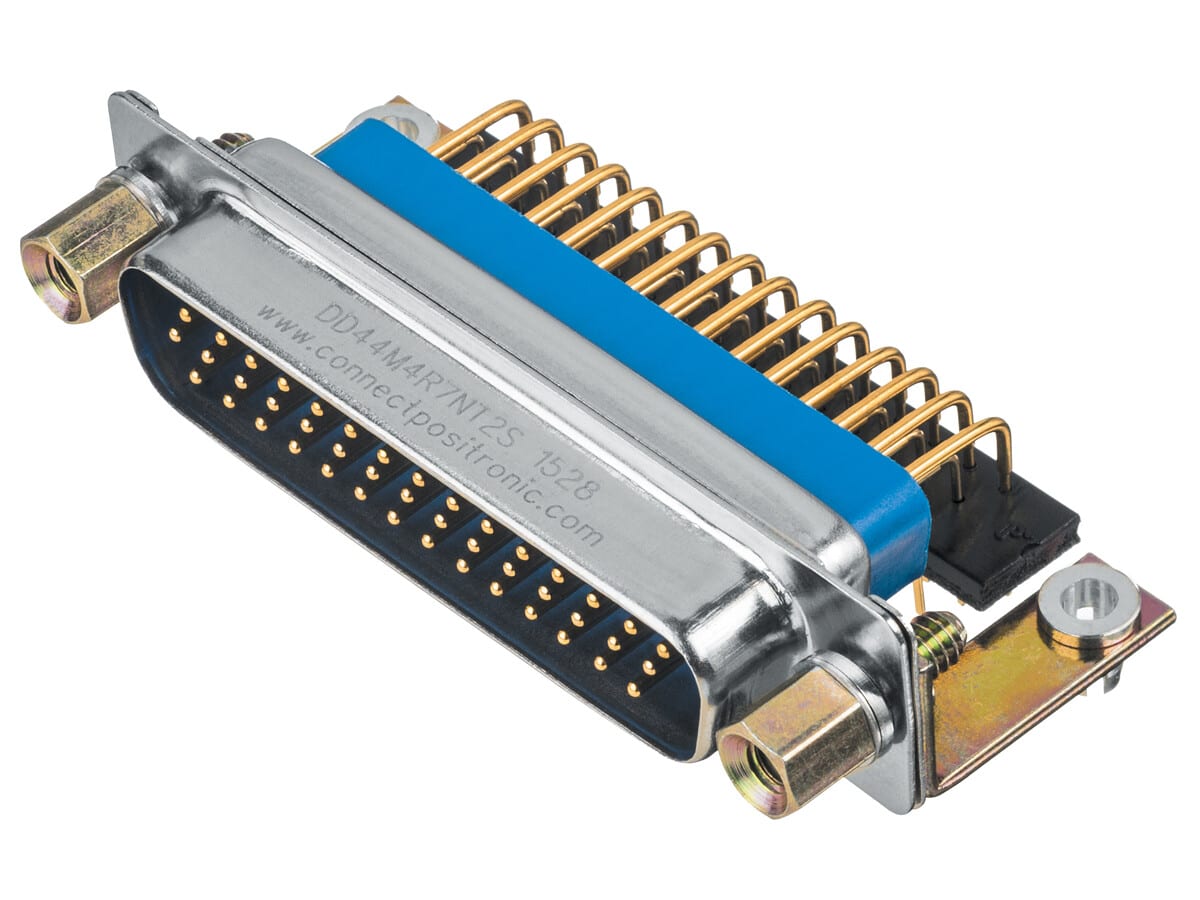

DD Series
The DD series is a part of the High Density D-subs family of connectors with size 22 machined contacts. DD series connectors offer wire, right angle solder, or straight solder termination options and Mil/Aero performance.
Your Part Number
General |
|
|---|---|
| Part Number Prefix | DD |
| Performance Level | Mil/aero |
| Qualifications | MIL-DTL-24308, SAE AS39029, UL #E49351, CSA #LR54219 |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials |
|
|---|---|
| Insulator Material | Polyester |
| Insulator Color | Blue |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Steel, Stainless steel |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 |
| Working Voltage (V rms) | 300 |
| Initial Contact Resistance (mΩ, max) | 5 |
| Contact Current Rating (A) | 5 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Free cable, Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.06 |
| Contact Style | Fixed, Removable |
| Contact Size | #22 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 40 |
| Contact Termination | Wire, PCB |
| Mating Cycles | 1000 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
-
