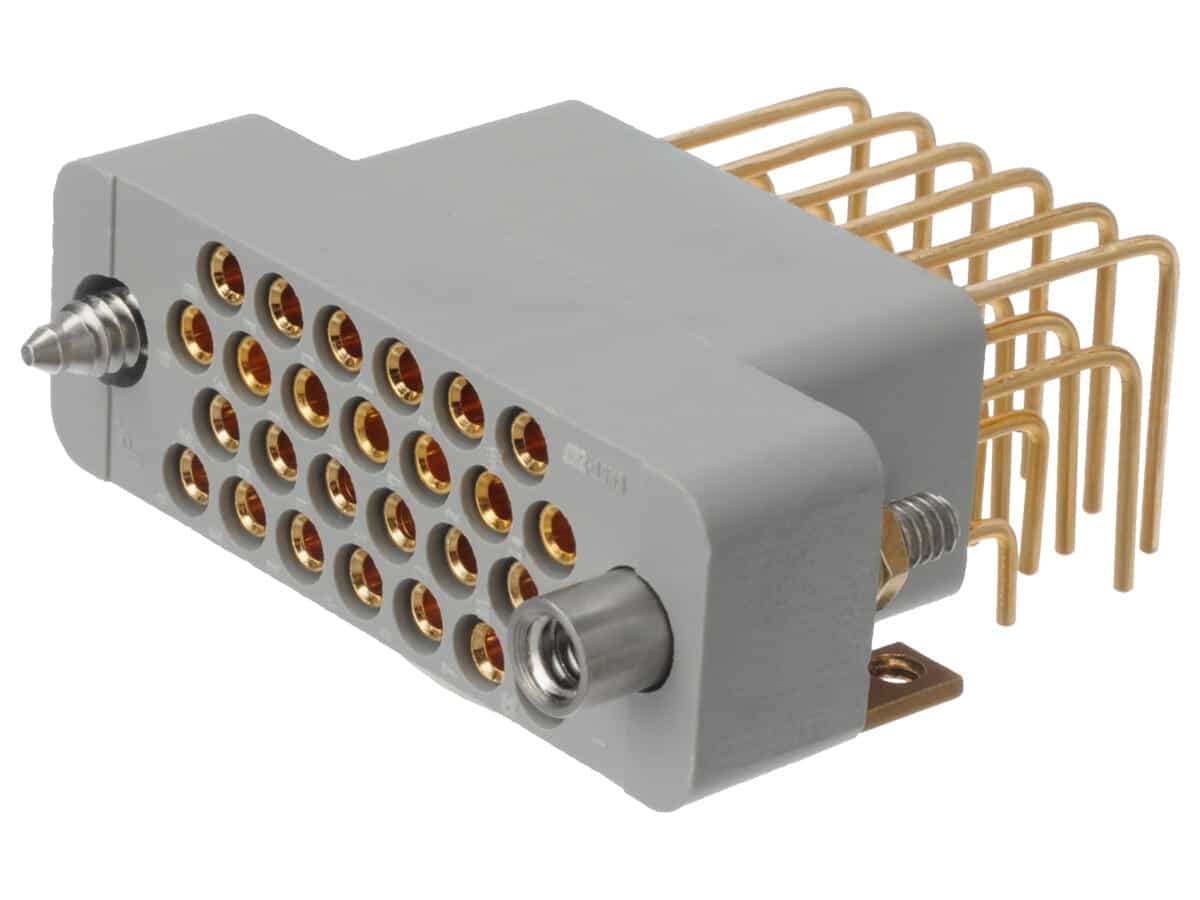

GAPL Series
The GAPL series is part of the Rugged Rack & Panel family of robust connectors for rack & panel applications. GAPL series connectors feature right angle solder termination.
General |
|
|---|---|
| Part Number Prefix | GAPL |
| Performance Level | Industrial, Mil/aero |
| Qualifications | UL #49351 |
| RoHS Compliance | RoHS 5/6 |
Materials |
|
|---|---|
| Insulator Material | DAP |
| Insulator Color | Grey |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Aluminum |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 25000 |
| Working Voltage (V rms) | 250 |
| Initial Contact Resistance (mΩ, max) | 3 |
| Contact Current Rating (A) | 7.5 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Polarizing guides/jackscrews |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.19 |
| Contact Style | Fixed |
| Contact Size | #16 |
| Female Contact Design | N/A |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 44 |
| Contact Termination | PCB |
| Mating Cycles | 1000 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
| Lead Free Solder Process | 1 |
