GFPL Series - Positronic The Science of Certainty

Loading...

Your Part Number

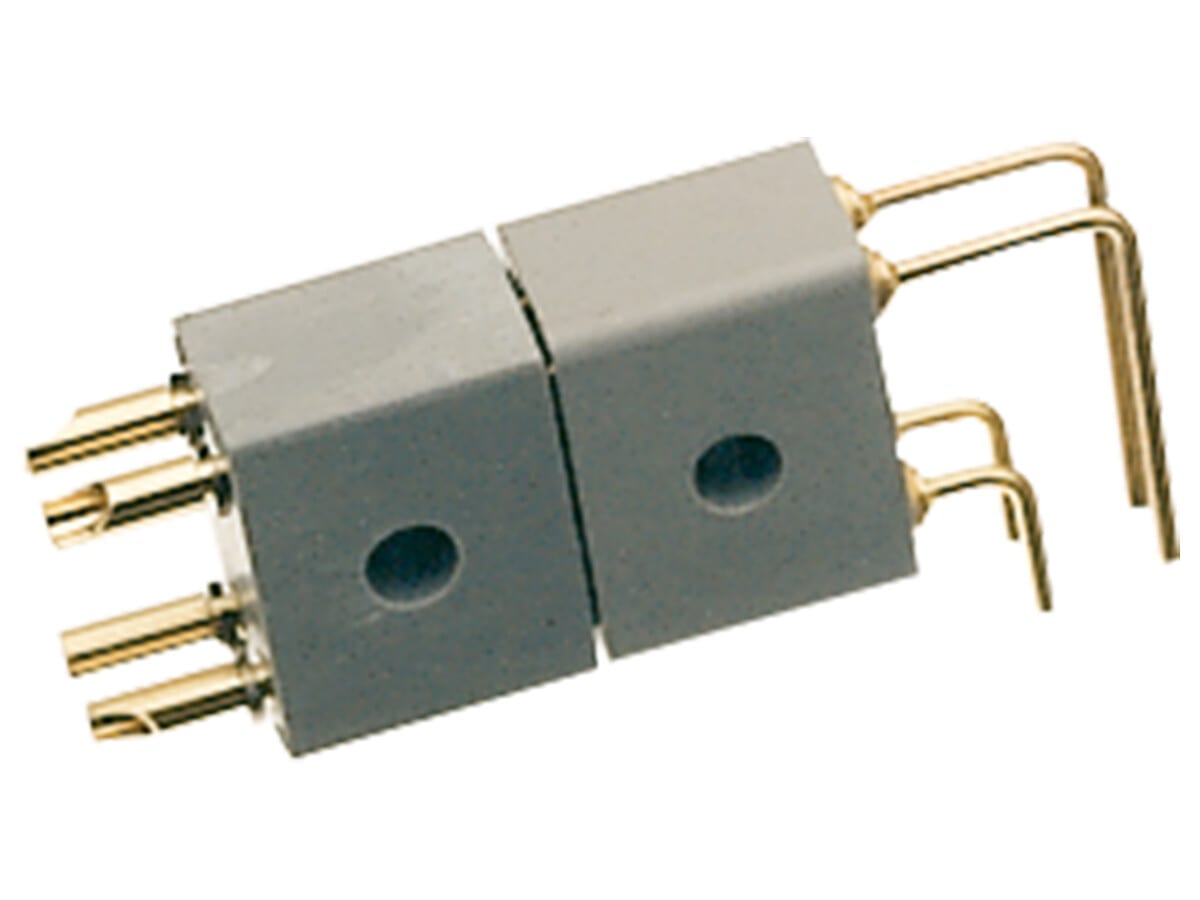

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	GFPL
Performance Level	Industrial, Mil/aero
Qualifications	UL #49351
RoHS Compliance	RoHS 5/6

Materials
Insulator Material	DAP
Insulator Color	Grey
Flammability Rating	UL 94V-0
Contact Material	Copper Alloy
Contact Plating	Gold flash, 0.76µm Au, 1.27µm Au
Shell Material	N/A

Electrical
Insulator Resistance (GΩ)	5.0
Proof Voltage (V rms)	2000
Working Voltage (V rms)	300
Initial Contact Resistance (mΩ, max)	10
Contact Current Rating (A)	7.5

Mechanical
Shape	Rectangular
Body Style	Free cable, PCB mount
Insulator Construction	One-piece
Polarization Method	Gender positioning of contacts
Locking System	Optional
Clearance and Creepage (mm min)	0.97
Contact Style	Fixed
Contact Size	#20
Female Contact Design	Open entry, Closed entry
Contact Retention Mechanism	Metal clip
Contact Retention (N)	44
Contact Termination	Wire, PCB
Mating Cycles	1000

Environmental
Temperature Range (ºC)	-55 to 125
Lead Free Solder Process	1
