GG Series

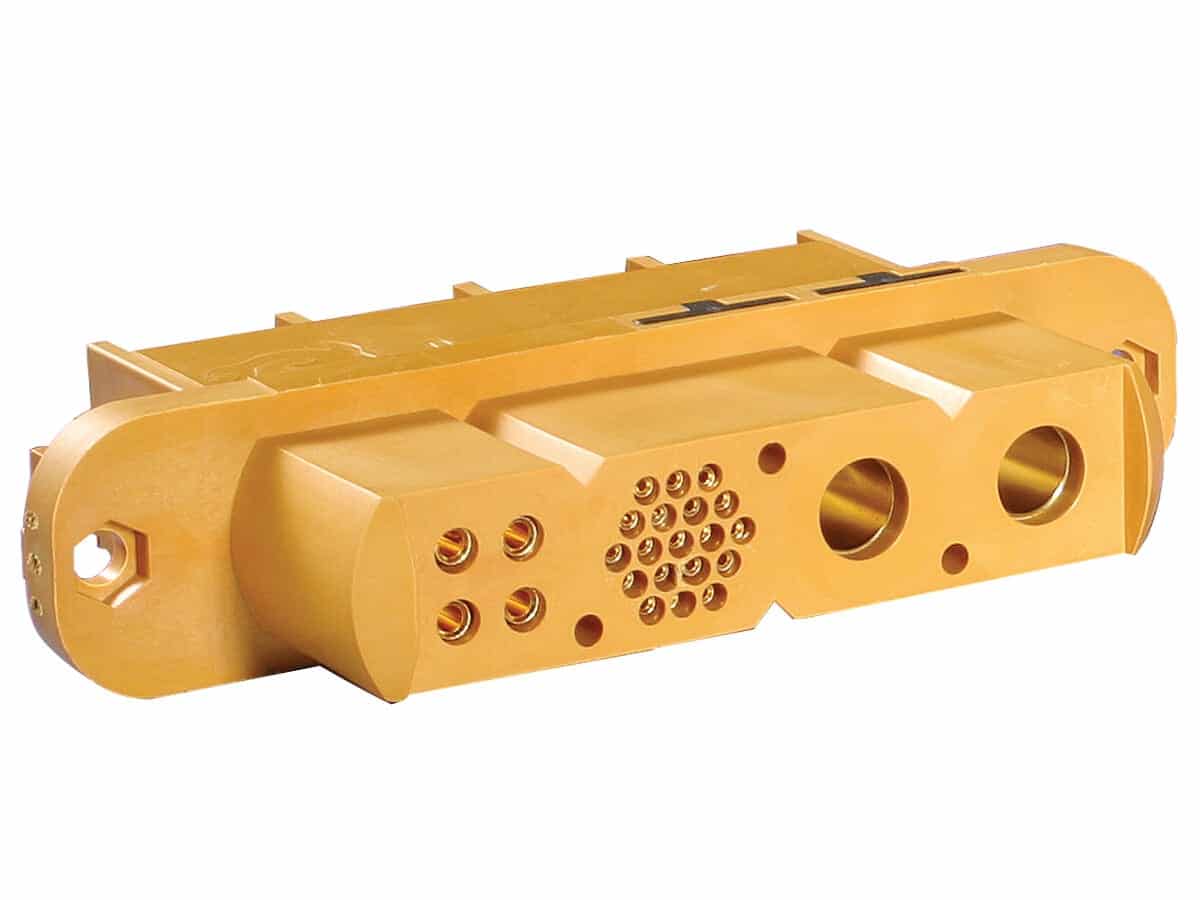

The GG is a unique connector series for two reasons. First of all, of all the power connectors in our catalog, the Great Golden boasts the ability to carry the most power in a single package. Secondly, it is a modular connector with a fixed envelope.
Loading...
Your Part Number
General |
|
|---|---|
| Part Number Prefix | GG |
| Performance Level | Industrial, Mil/aero |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials |
|
|---|---|
| Insulator Material | Nylon |
| Insulator Color | Gold |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | N/A |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 to 3000 |
| Working Voltage (V rms) | 500 |
| Initial Contact Resistance (mΩ, max) | 0.38 |
| Contact Current Rating (A) | 200 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Free cable, Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Insulator keyway |
| Locking System | Optional |
| Blind Mating | 1 |
| Contact Style | Removable |
| Contact Size | #20, #16, #12, #8, #0 |
| Female Contact Design | Open entry, Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 44 to 132 |
| Contact Termination | Wire, Busbar |
| Mating Cycles | 1000 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
