HAD Series

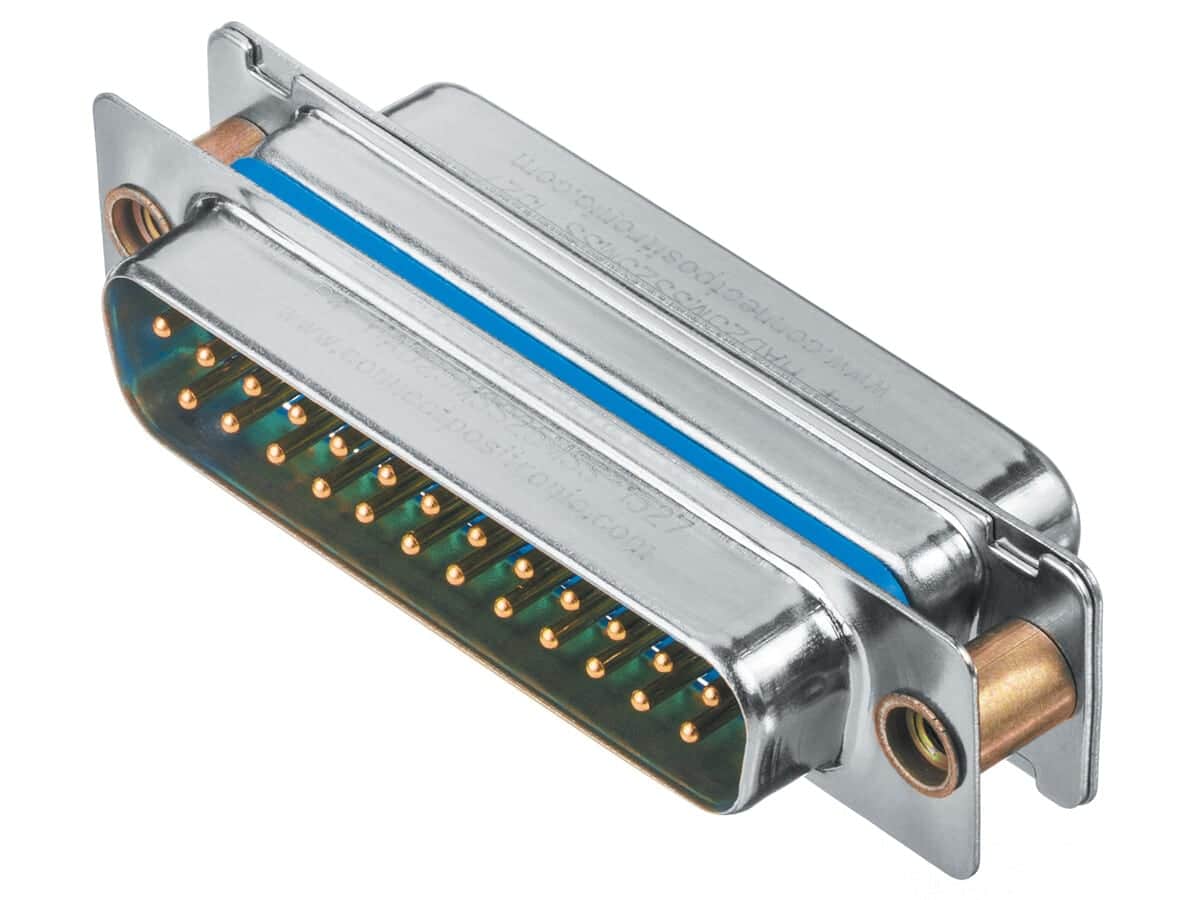

The HAD series is part of the Adapter/Saver family and Helps prevent unwanted wear during testing. HAD series adapter/saver offer industrial performance with size 20 contacts.
General |
|
|---|---|
| Part Number Prefix | HAD |
| Performance Level | Mil/Aero |
| RoHS Compliance | RoHS 5/6 |
Materials |
|
|---|---|
| Insulator Material | DAP |
| Insulator Color | Black |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Steel, Stainless steel |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 |
| Working Voltage (V rms) | 300 |
| Initial Contact Resistance (mΩ, max) | 4 |
| Contact Current Rating (A) | 9 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.00 |
| Contact Style | Fixed |
| Contact Size | #20 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 40 |
| Contact Termination | Feedthrough |
| Mating Cycles | 1000 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
| Lead Free Solder Process | 1 |
