IP Series

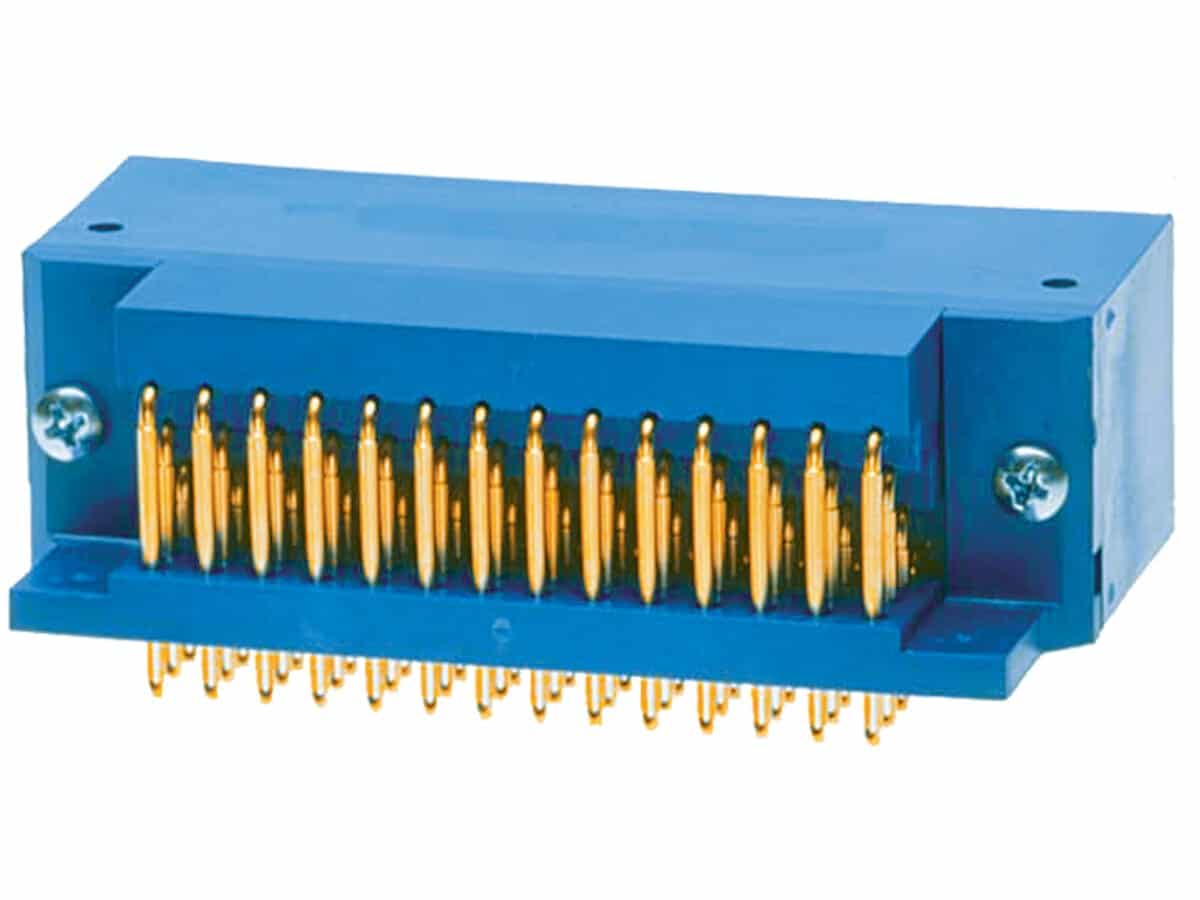

The IP series is part of the Infinity family of stellar blind mating, mixed density connector with robust housing. IP series are 98mm (female) connectors.

Your Part Number

Total length: 0mm Image shown is face view of male connector

General

Part Number PrefixIP
Performance LevelIndustrial
QualificationsUL #E49351, CSA #LR54219
RoHS ComplianceRoHS 5/6 (6/6 on select parts)

Materials

Insulator MaterialPolyester
Insulator ColorBlue
Flammability RatingUL 94V-0
Contact MaterialCopper Alloy
Contact PlatingGold flash, 0.76µm Au, 1.27µm Au
Shell MaterialN/A

Electrical

Insulator Resistance (GΩ)5.0
Proof Voltage (V rms)2000
Working Voltage (V rms)600
Initial Contact Resistance (mΩ, max)1
Contact Current Rating (A)40

Mechanical

ShapeRectangular
Body StyleFree cable, Panel mount
Insulator ConstructionOne-piece
Polarization MethodInsulator keyway
Locking SystemOptional
Blind Mating1
Clearance and Creepage (mm min)Contact technical sales
Contact StyleFixed, Removable
Contact Size#20, #16, #12
Female Contact DesignOpen entry, Closed entry
Contact Retention MechanismMetal clip, Press-in
Contact Retention (N)44 to 67
Contact TerminationWire, PCB
Mating Cycles500

Environmental

Temperature Range (ºC)-55 to 125
