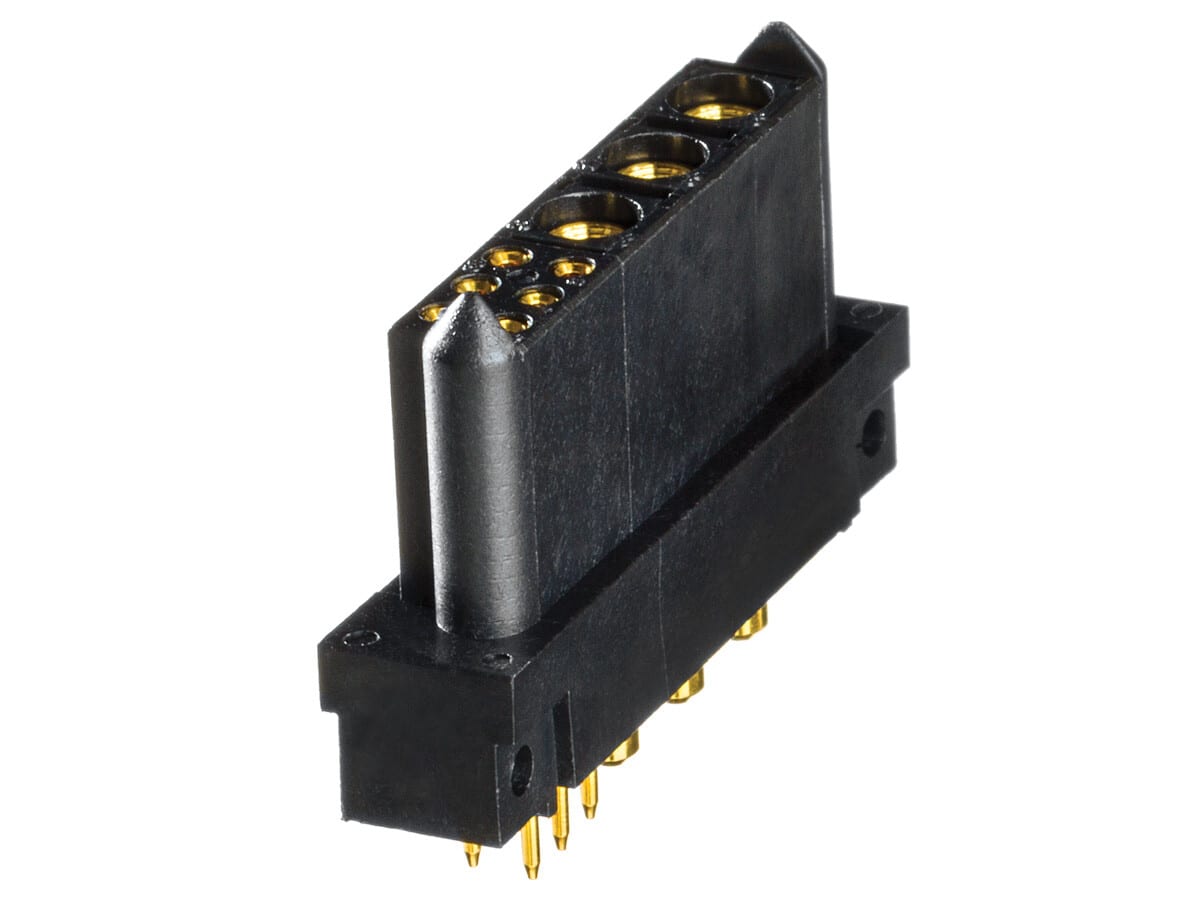

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	LSP
Performance Level	Industrial, Mil/aero
RoHS Compliance	RoHS 5/6 (6/6 on select parts)

Materials
Insulator Material	Polyester
Insulator Color	Black
Flammability Rating	UL 94V-0
Contact Material	Copper Alloy
Contact Plating	Gold flash, 0.76µm Au, 1.27µm Au
Shell Material	N/A

Electrical
Insulator Resistance (GΩ)	5.0
Proof Voltage (V rms)	1800 to 2200
Working Voltage (V rms)	250
Initial Contact Resistance (mΩ, max)	1
Contact Current Rating (A)	38

Mechanical
Shape	Rectangular
Body Style	Free cable, Panel mount
Insulator Construction	One-piece
Polarization Method	Insulator keyway
Locking System	Optional
Blind Mating	1
Contact Style	Fixed, Removable
Contact Size	#22, #20, #12
Female Contact Design	Open entry, Closed entry, Closed entry
Contact Retention Mechanism	Metal clip, Press-in
Contact Retention (N)	27 to 67
Contact Termination	Wire, PCB
Mating Cycles	1000

Environmental
Temperature Range (ºC)	-55 to 125

产品选择指南
Revision: NC (Chinese version)
Scorpion™ LP (Low Profile) Catalog
Revision: NC
A low-profile version of our modular Scorpion family
COMMERCIAL AIR
Revision: NC
Connector product comparison, features, and benefits for use in commercial air applications

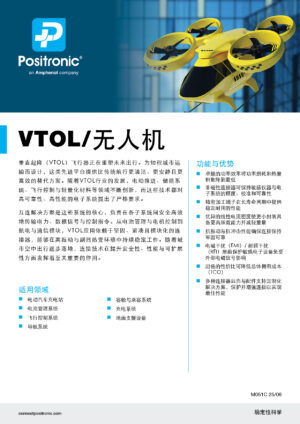

VTOL/DRONE
