MCBX Series

The MCBX Series is a part of the MACH-D family of D-Sub connectors with size 8, 16, 20, 22 machined contacts. MCBX Series connectors offer machined shells with wire, right angle solder, or straight solder termination options. All MACH-D products conform to the quality and performance standards of MIL-DTL-24308.

Loading...

Your Part Number

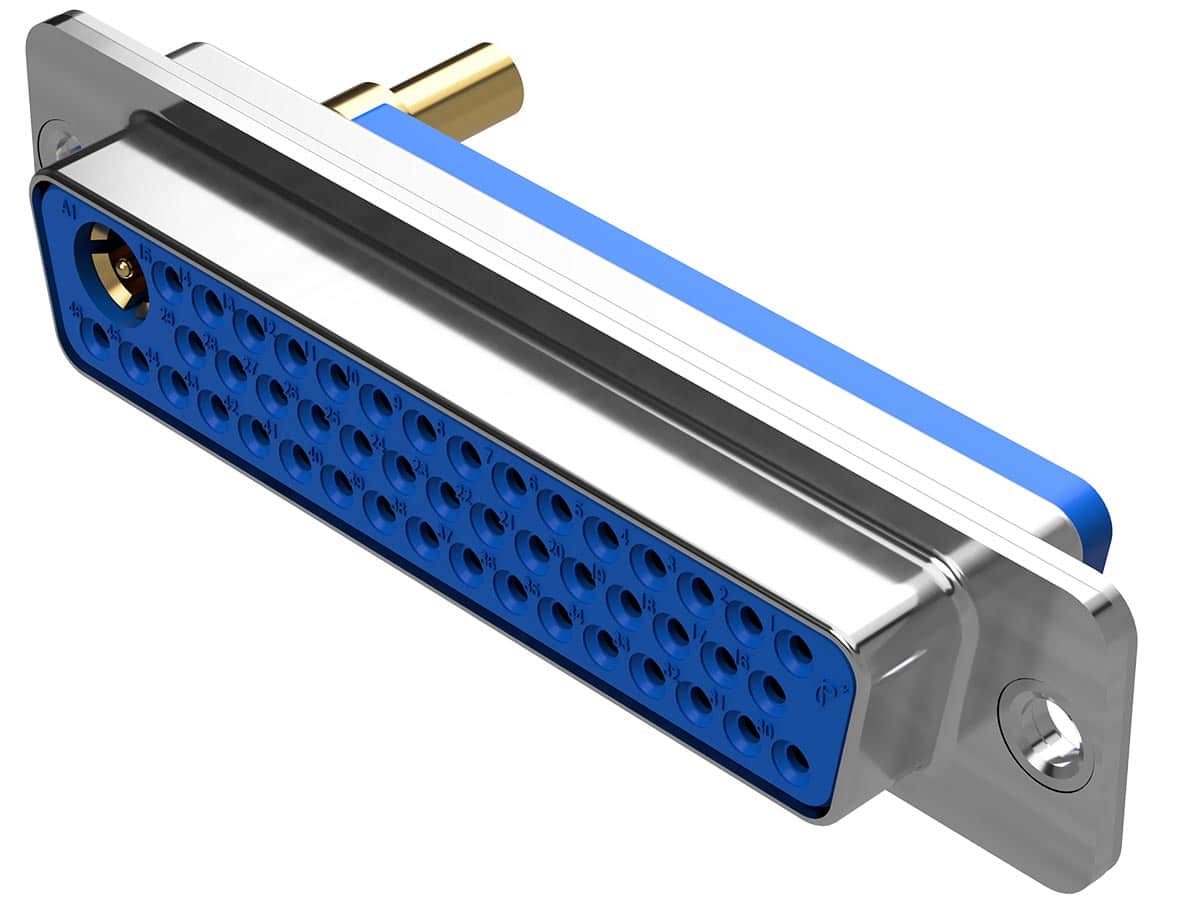

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	MCBX
Performance Level	Mil/Aero & Spaceflight
Qualifications	Meets or exceeds performance requirements of MIL-DTL-24308 and NASA Goddard GSFC-311
RoHS Compliance	Optional

Materials
Insulator Material	PBT
Insulator Color	Blue
Flammability Rating	UL 94 V-0
Contact Material	Copper Alloy
Contact Plating	50 μin gold over nickel or copper underplate
Shell Material	Aluminum, Stainless steel

Electrical
Insulator Resistance (GΩ)	5
Proof Voltage (V rms)	1000
Working Voltage (V rms)	300
Initial Contact Resistance (mΩ, max)	0.5
Contact Current Rating (A)	Up to 75

Mechanical
Shape	Rectangular
Body Style	Free cable, Panel mount
Insulator Construction	One-piece
Polarization Method	Trapezoidal shape of shell
Locking System	Optional
Contact Style	Fixed, Removable
Contact Size	#8, #20
Female Contact Design	PosiBand closed entry
Contact Retention Mechanism	Metal clip, Press-in
Contact Retention (N)	40 to 98
Contact Termination	Wire, PCB
Mating Cycles	500

Environmental
Temperature Range (ºC)	-55 to 125ºC
