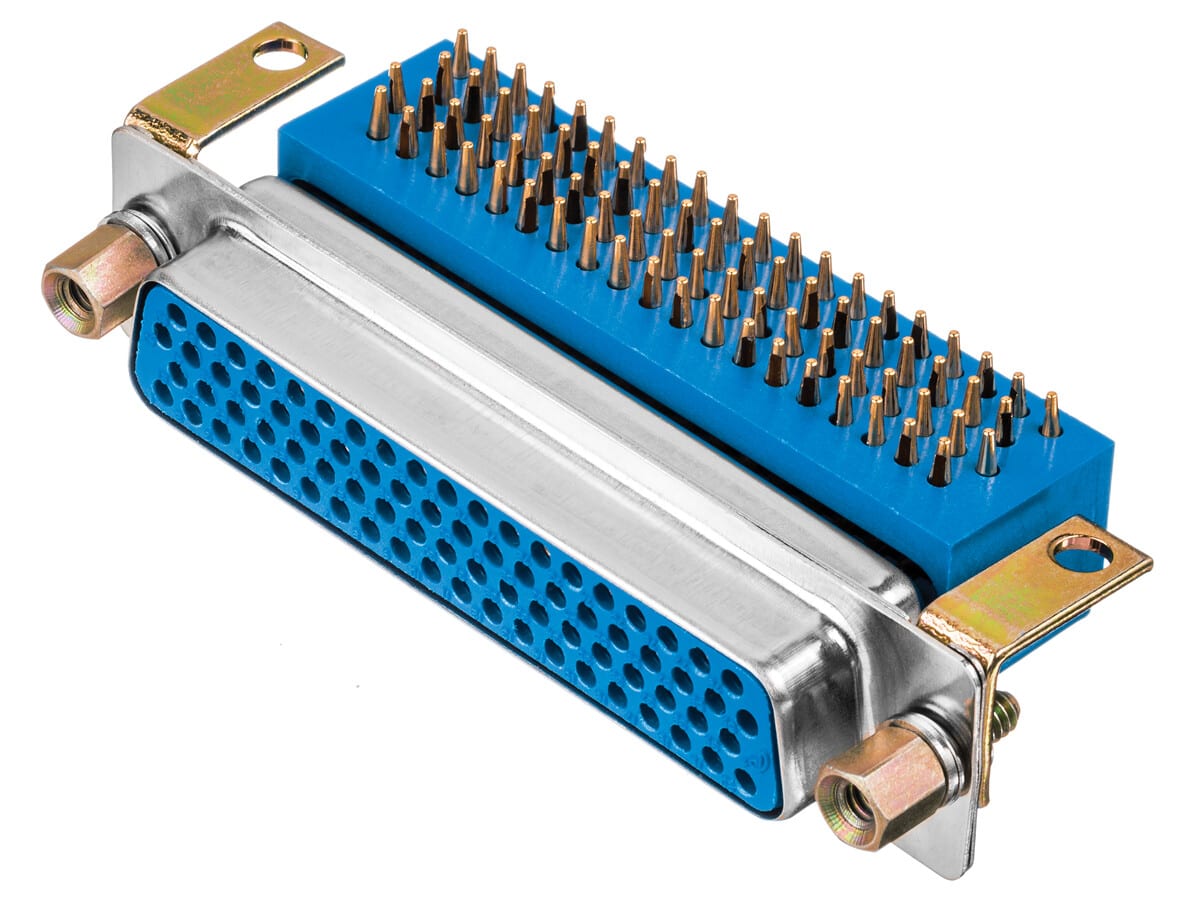

The PCDD series is a part of the High Density D-subs family of connectors with size 22 machined contacts. PCDD series offer straight press-fit terminations, and industrial or Mil/Aero performance options.
General |
|
|---|---|
| Part Number Prefix | PCDD |
| Performance Level | Industrial, Mil/aero |
| Qualifications | UL #E49351, CUL #49351 |
| RoHS Compliance | RoHS 5/6 |
Materials |
|
|---|---|
| Insulator Material | Polyester |
| Insulator Color | Blue |
| Flammability Rating | UL 94V-0 |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Steel, Stainless steel |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 |
| Working Voltage (V rms) | 300 |
| Initial Contact Resistance (mΩ, max) | 0E:10, P:5 |
| Contact Current Rating (A) | 5 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.06 |
| Contact Style | Fixed |
| Contact Size | #22 |
| Female Contact Design | Open entry, Closed entry |
| Contact Retention Mechanism | Press-in |
| Contact Retention (N) | 21 |
| Contact Termination | PCB |
| Mating Cycles | 1000 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
