PLA Series

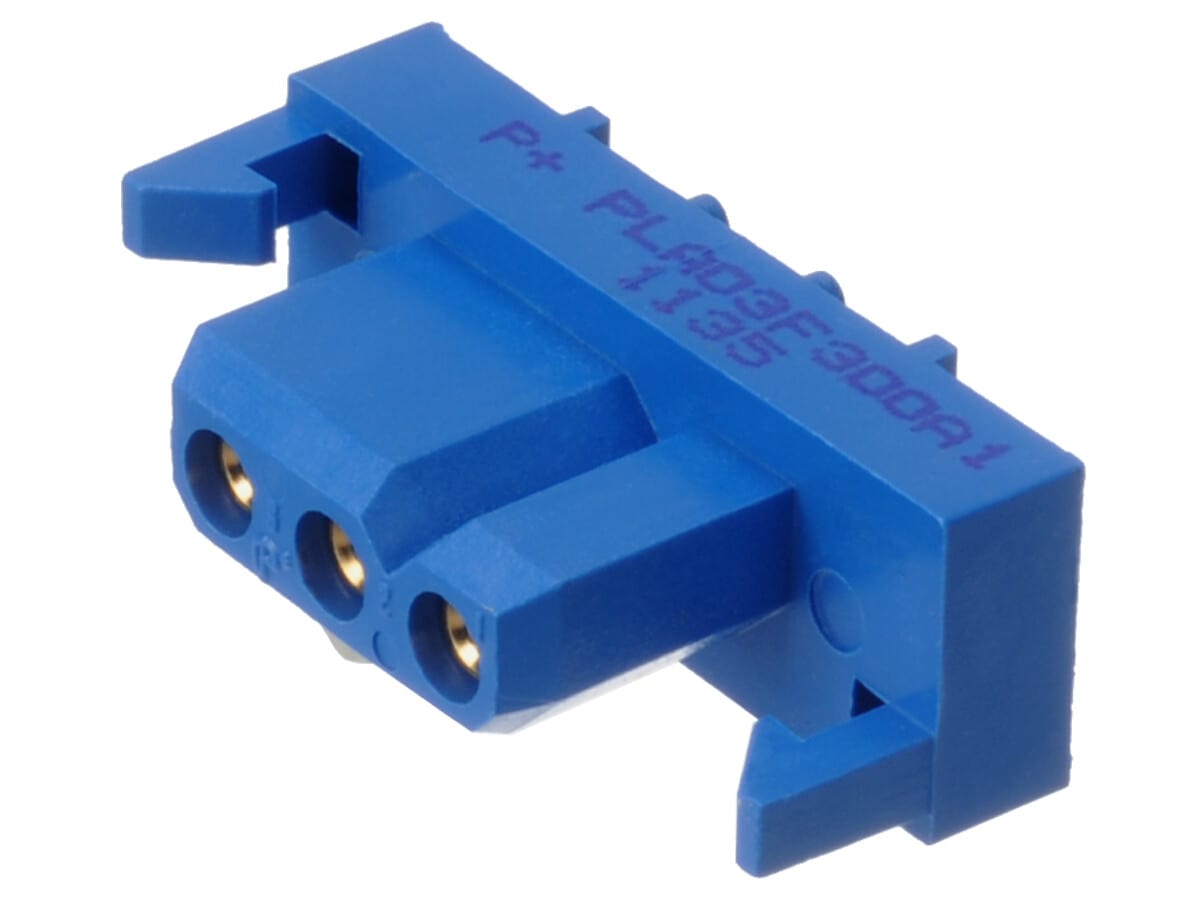

The PLA series is a part of the Power Connection Systems family of flagship power connector with many options for size 16 contact. PLA is a series of one row connectors.
Loading...
Your Part Number
Total length:
0mm
Image shown is face view of male connector
General |
|
|---|---|
| Part Number Prefix | PLA |
| Performance Level | Industrial |
| Qualifications | CUL #E49351 |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials |
|
|---|---|
| Insulator Material | Polyester |
| Insulator Color | Blue |
| Flammability Rating | UL 94V-0 |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | N/A |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 2000 |
| Working Voltage (V rms) | 600 |
| Initial Contact Resistance (mΩ, max) | 1.6 |
| Contact Current Rating (A) | 18 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Free cable, Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Insulator keyway |
| Locking System | Integrated |
| Blind Mating | 1 |
| Clearance and Creepage (mm min) | 4.00 |
| Contact Style | Fixed, Removable |
| Contact Size | #16 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip, Press-in |
| Contact Retention (N) | 26 |
| Contact Termination | Wire, PCB |
| Mating Cycles | 500 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
-
