SCBC Series
The SCBC series is part of the Combo-D family mixed density D-sub to mix signal/power/coax/HV and fiber optic. SCBC series connectors offer crimp removable size 8 and 20 contacts and spaceflight performance.
Loading...
Your Part Number
Total length:
0mm

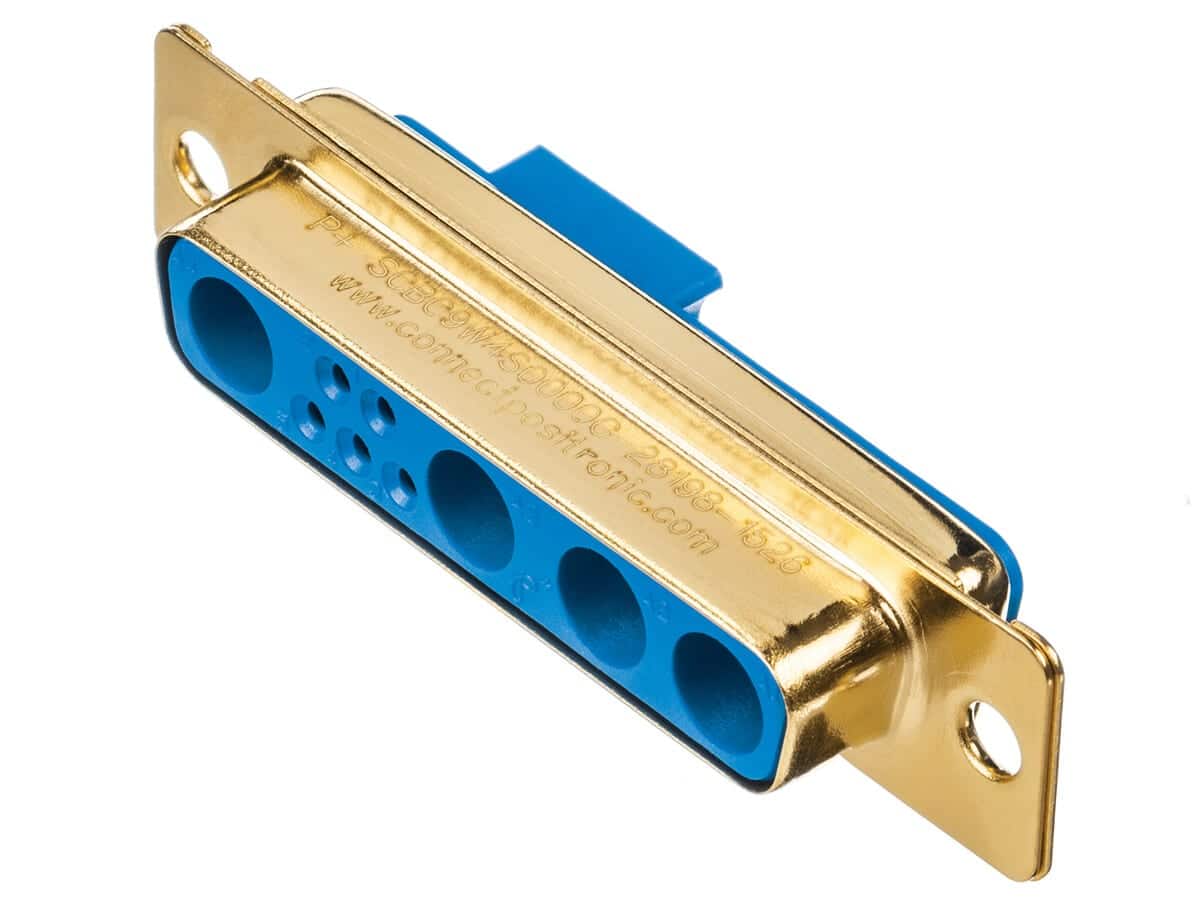

Image shown is face view of male connector
General |
|
|---|---|
| Part Number Prefix | SCBC |
| Performance Level | Spaceflight |
| Qualifications | GSFC S-311 |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials |
|
|---|---|
| Insulator Material | Polyester |
| Insulator Color | Blue |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | 1.27µm Au (min) |
| Shell Material | Brass |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 |
| Working Voltage (V rms) | 300 |
| Initial Contact Resistance (mΩ, max) | 0.5 |
| Contact Current Rating (A) | 50 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Free cable, Panel mount |
| Insulator Construction | Two-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.00 |
| Contact Style | Removable |
| Contact Size | #20, #8 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 40 to 98 |
| Contact Termination | Wire |
| Mating Cycles | 1000 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
-
产品选择指南
Revision: NC (Chinese version) -
High Performance D-Sub Catalog
Revision: C3For applications requiring non-outgassing and low magnetism
-
D-Sub Series Selection Guide
Revision: M024 RevA1 23/05Simplify the d-sub selection process by comparing product features and market appropriateness
-
PRECISION MACHINED BACKSHELLS
Revision: Rev.B2 25/02Precision machined lightweight aluminum two-piece backshells with cable clamp for d-sub connectors
(A / AS / AL Series)
-
PRECISION MACHINED BANDED BACKSHELLS
Revision: Rev.A 25/02Precision machined lightweight aluminum two-piece banded backshells for d-sub connectors
(AP / AK / AW Series)
-
ELECTROMAGNETICALLY COMPATIBLE MACHINED LOW-PROFILE BACKSHELLS
Revision: NCPrecision machined lightweight aluminum low-profile banded backshells with tie wrap for d-sub connectors
(EL Series)
-
Space
Revision: M042Connector product comparison, features, and benefits for use in space applications
| Part Number | RoHS 5/6 (< 4% lead) | Size | Type | Termination | Gender | Female Contact Style | Current Rating (A) | Initial Contact Resistance (mΩ) | Wire Size (AWG) | Overall Length | Barrel Depth | Barrel Internal Diameter | Material | Plating | Notes |
|---|
Part Number | RoHS 5/6 (< 4% lead) | Size | Type | Termination | Gender | Female Contact Style | Current Rating (A) | Initial Contact Resistance (mΩ) | Wire Size (AWG) | Overall Length | Barrel Depth | Barrel Internal Diameter | Material | Plating | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FC4008M/AA | Yes | #8 | Power | Crimp | Female socket | Closed entry | 40 | #8 [10.0] | 21.80 [0.858] | 8.99 [0.354] | 4.60 [0.181] | Copper alloy | Gold, 50µ | ||
| FC4010M/AA | Yes | #8 | Power | Crimp | Female socket | Closed entry | 30 | #10 [5.3] | 21.80 [0.858] | 8.99 [0.354] | 3.10 [0.122] | Copper alloy | Gold, 50µ | ||
| FC4012M/AA | Yes | #8 | Power | Crimp | Female socket | Closed entry | 25 | #12-14 [4.0-2.5] | 21.80 [0.858] | 8.99 [0.354] | 2.57 [0.101] | Copper alloy | Gold, 50µ | ||
| FC4016M/AA | Yes | #8 | Power | Crimp | Female socket | Closed entry | 15 | #16-18 [1.5-1.0] | 21.80 [0.858] | 8.99 [0.354] | 1.70 [0.067] | Copper alloy | Gold, 50µ | ||
| FC4101M/AA | Yes | #8 | Coax | Solder cup / Crimp | Female socket | N/A | 23.60 [0.929] | 1.02 [0.040] | Copper alloy | Gold, 50µ | For use with RG cable 178 B/U 196 B/U | ||||
| FC4102M/AA | Yes | #8 | Coax | Solder cup / Crimp | Female socket | N/A | 23.60 [0.929] | 1.70 [0.067] | Copper alloy | Gold, 50µ | For use with RG cable 179 B/U 316 /U | ||||
| FC4103M/AA | Yes | #8 | Coax | Solder cup / Crimp | Female socket | N/A | 26.34 [1.037] | 2.74 [0.108] | Copper alloy | Gold, 50µ | For use with RG cable 180 B/U | ||||
| FC4104M/AA | Yes | #8 | Coax | Solder cup / Crimp | Female socket | N/A | 26.34 [1.037] | 3.05 [0.120] | Copper alloy | Gold, 50µ | For use with RG cable 58 B/U | ||||
| FC6018M2/AA | Yes | #20 | Signal | Crimp | Female socket | Closed entry | 10 | #18 *2 [1.0] | 23.24 [0.915] | 4.55 [0.179] | 1.40 [0.055] | Copper alloy | Gold, 50µ | ||
| FC6020M2/AA | Yes | #20 | Signal | Crimp | Female socket | Closed entry | 10 | #20-24 [0.5-0.25] | 13.67 [0.538] | 4.32+0.38-0.51 [0.170+0.015-0.020] | 1.14 [0.045] | Copper alloy | Gold, 50µ |
| Part Number |
|---|
| FC4008M/AA |
| FC4010M/AA |
| FC4012M/AA |
| FC4016M/AA |
| FC4101M/AA |
| FC4102M/AA |
| FC4103M/AA |
| FC4104M/AA |
| FC6018M2/AA |
| FC6020M2/AA |
This view is unavailable on smaller devices. Please visit on larger screen.
| PCN | Title | Date of Notification |
|---|---|---|
| 10646 | Surface Finish Standardization of Machined Aluminum (A Series) Backshells | 2024091818 September 2024 |
| 10617 | Yellow Conversion Coating (RoHS) to Clear Conversion Coating (RoHS) | 2023041717 April 2023 |
| 10573 | End of Life of #20 and #22 Legacy Closed Entry Female Contacts in Select D-Sub and Rectangular Series | 2022012020 January 2022 |
| Legacy Closed-entry EOL Announcement | Legacy Closed-entry EOL Announcement 03 November 2021 | 2021110303 November 2021 |
| 10586 | Discontinue Baking Operation for Plastic Components Used in Low Outgassing Connectors | 2021081818 August 2021 |
