SD Series

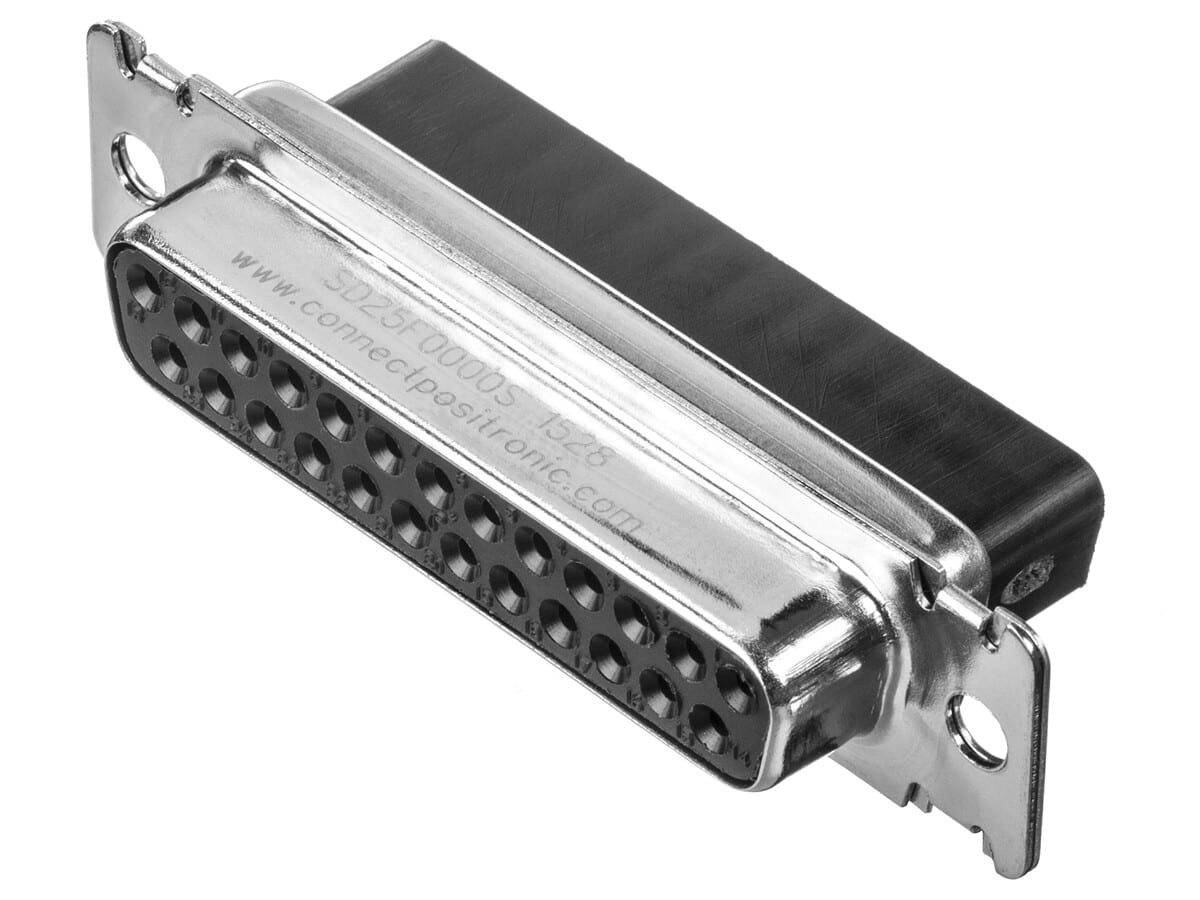

The SD series is part of the Standard Density D family of standard density D-subs with size 20 machined contacts. SD series connectors features removable contacts, industrial performance and -55°C to 125°C operating temperature
Your Part Number
General |
|
|---|---|
| Part Number Prefix | SD |
| Performance Level | Industrial |
| Qualifications | UL #E49351, CSA #LR54219 |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials |
|
|---|---|
| Insulator Material | Nylon |
| Insulator Color | Black |
| Flammability Rating | UL 94V-0 |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Steel |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 |
| Working Voltage (V rms) | 300 |
| Initial Contact Resistance (mΩ, max) | 8 |
| Contact Current Rating (A) | 7.5 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Free cable, Panel mount |
| Insulator Construction | Two-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 1.00 |
| Contact Style | Removable |
| Contact Size | #20 |
| Female Contact Design | Open entry |
| Contact Retention Mechanism | Integrated plastic clip |
| Contact Retention (N) | 40 |
| Contact Termination | Wire |
| Mating Cycles | 500 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 125 |
-
