SGM Series

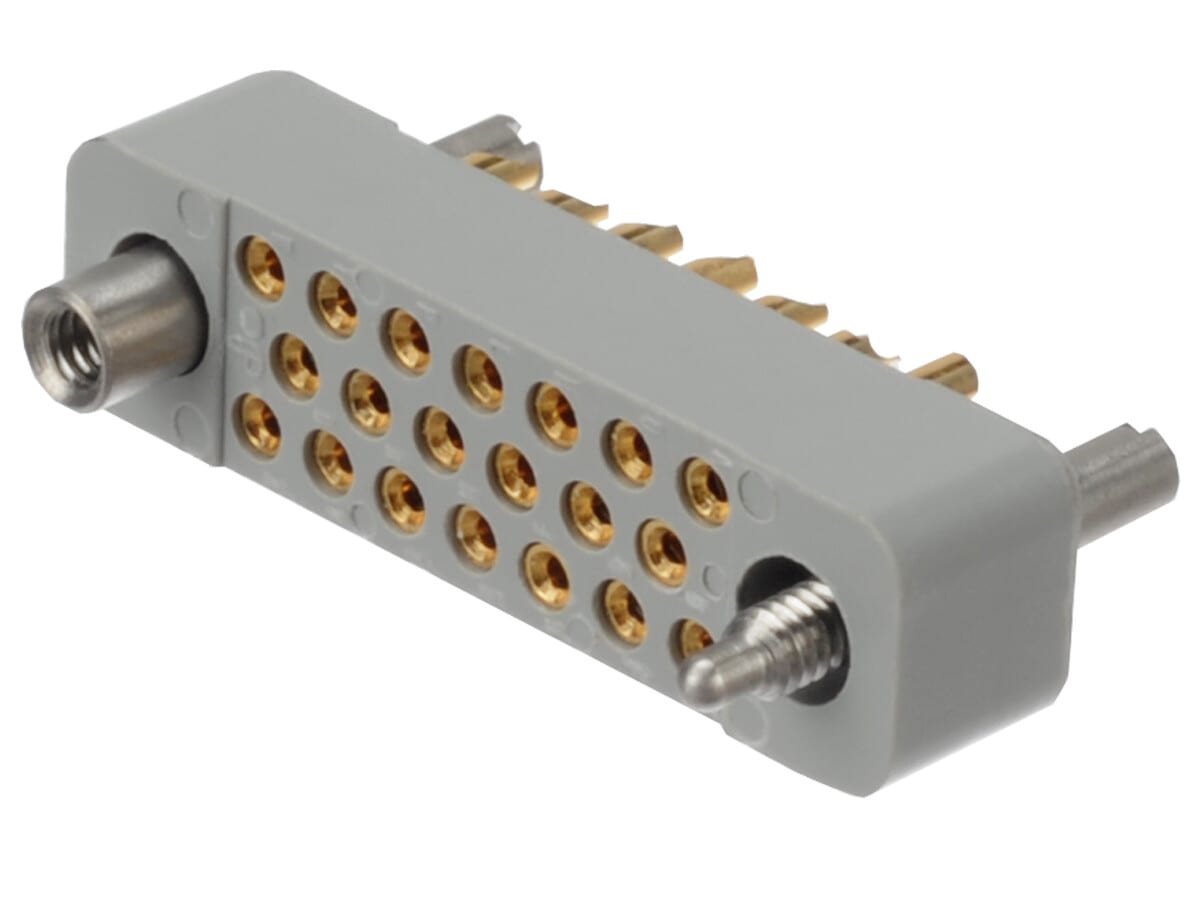

The SGM series is part of the Mini-Rectangular family of high density connectors for rack & panel applications. SGM series connectors offer straight solder termination.
Loading...
Your Part Number
Total length:
0mm
Image shown is face view of male connector
General |
|
---|---|
Part Number Prefix | SGM |
Performance Level | Industrial, Mil/aero |
Qualifications | MIL-DTL-28748, UL |
RoHS Compliance | RoHS 5/6 |
Materials |
|
---|---|
Insulator Material | DAP |
Insulator Color | Grey |
Flammability Rating | UL 94V-0 |
Contact Material | Copper Alloy |
Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
Shell Material | Aluminum |
Electrical |
|
---|---|
Insulator Resistance (GΩ) | 5.0 |
Proof Voltage (V rms) | 2200 |
Working Voltage (V rms) | 250 |
Initial Contact Resistance (mΩ, max) | 4 |
Contact Current Rating (A) | 5 |
Mechanical |
|
---|---|
Shape | Rectangular |
Body Style | Free cable, Panel mount |
Insulator Construction | One-piece |
Polarization Method | Polarizing guides/jackscrews |
Locking System | Optional |
Clearance and Creepage (mm min) | 0.71 |
Contact Style | Fixed |
Contact Size | #22 |
Female Contact Design | Closed entry |
Contact Retention Mechanism | Metal clip |
Contact Retention (N) | 26 |
Contact Termination | Wire, PCB |
Mating Cycles | 1000 |
Environmental |
|
---|---|
Temperature Range (ºC) | -55 to 135 |
Lead Free Solder Process | 1 |
PCN | Title | Date of Notification |
---|---|---|
10652 | Upgrade Rack and Panel Stamped Shells to CNC-Machined Shells | 2025032626 March 2025 |
10645 | Change From Hexavalent to Trivalent Chromium On All Zinc-plated Products | 2024091111 September 2024 |
10642 | Steel Hardware Lead Elimination | 2024071212 July 2024 |
10629 | Part Marking Format Change for Select Connector Families within the Rectangular and D-Sub Categories | 2024042222 April 2024 |
10610 | Change of Manufacturing Location for Plating Operations | 2023011313 January 2023 |
10573 | End of Life of #20 and #22 Legacy Closed Entry Female Contacts in Select D-Sub and Rectangular Series | 2022012020 January 2022 |
Legacy Closed-entry EOL Announcement | Legacy Closed-entry EOL Announcement 03 November 2021 | 2021110303 November 2021 |
10575 | Superseding Part Numbers for RoHS-compliant Connectors with Tin-lead Solder Dipped Contact Terminations | 2021022424 February 2021 |
