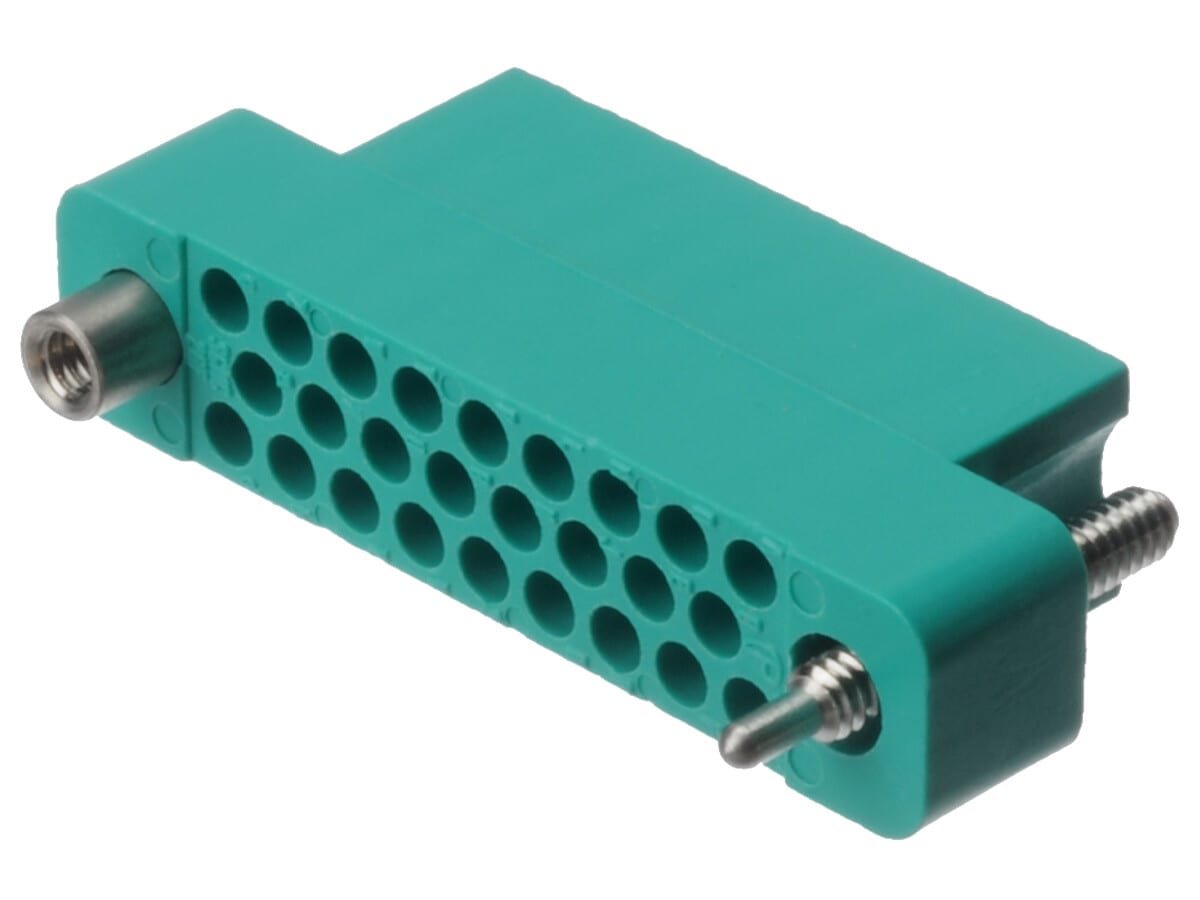

SGMC Series

The SGMC series is part of the Mini-Rectangular family of high density connectors for rack & panel applications. SGMC series connectors offer size 22 contacts & wire termination.

General

Part Number PrefixSGMC
Performance LevelIndustrial, Mil/aero
QualificationsMIL-DTL-28748, SAE AS39029, UL
RoHS ComplianceRoHS 5/6 (6/6 on select parts)

Materials

Insulator MaterialDAP
Insulator ColorGreen
Flammability RatingUL 94V-0
Contact MaterialCopper Alloy
Contact PlatingGold flash, 0.76µm Au, 1.27µm Au
Shell MaterialAluminum

Electrical

Insulator Resistance (GΩ)5.0
Proof Voltage (V rms)2200
Working Voltage (V rms)250
Initial Contact Resistance (mΩ, max)4
Contact Current Rating (A)5

Mechanical

ShapeRectangular
Body StyleFree cable, Panel mount
Insulator ConstructionOne-piece
Polarization MethodPolarizing guides/jackscrews
Locking SystemOptional
Clearance and Creepage (mm min)1.52
Contact StyleRemovable
Contact Size#22
Female Contact DesignClosed entry
Contact Retention MechanismMetal clip
Contact Retention (N)26
Contact TerminationWire
Mating Cycles1000

Environmental

Temperature Range (ºC)-55 to 135
Lead Free Solder Process1
