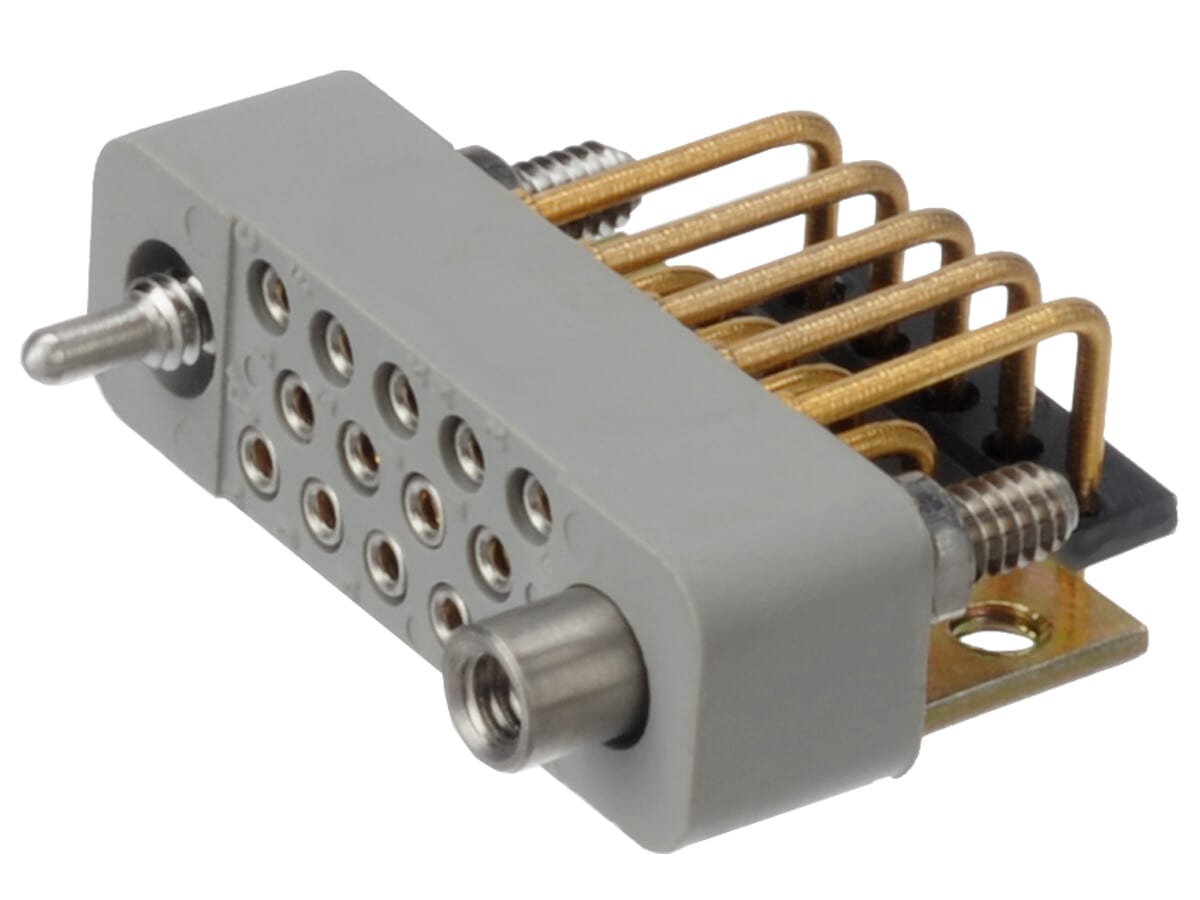

The SMPL series is part of the Mini-Rectangular family of high density connectors for rack & panel applications. SMPL series connectors offer size 22 machined contacts & right angle solder termination.
General |
|
|---|---|
| Part Number Prefix | SMPL |
| Performance Level | Industrial, Mil/aero |
| Qualifications | UL#E49351, UL |
| RoHS Compliance | RoHS 5/6 |
Materials |
|
|---|---|
| Insulator Material | DAP |
| Insulator Color | Grey |
| Flammability Rating | UL 94V-0 |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
| Shell Material | Aluminum |
Electrical |
|
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 2200 |
| Working Voltage (V rms) | 250 |
| Initial Contact Resistance (mΩ, max) | 4 |
| Contact Current Rating (A) | 5 |
Mechanical |
|
|---|---|
| Shape | Rectangular |
| Body Style | Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Polarizing guides/jackscrews |
| Locking System | Optional |
| Clearance and Creepage (mm min) | 0.71 |
| Contact Style | Fixed |
| Contact Size | #22 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip |
| Contact Retention (N) | 26 |
| Contact Termination | PCB |
| Mating Cycles | 1000 |
Environmental |
|
|---|---|
| Temperature Range (ºC) | -55 to 135 |
| Lead Free Solder Process | 1 |
