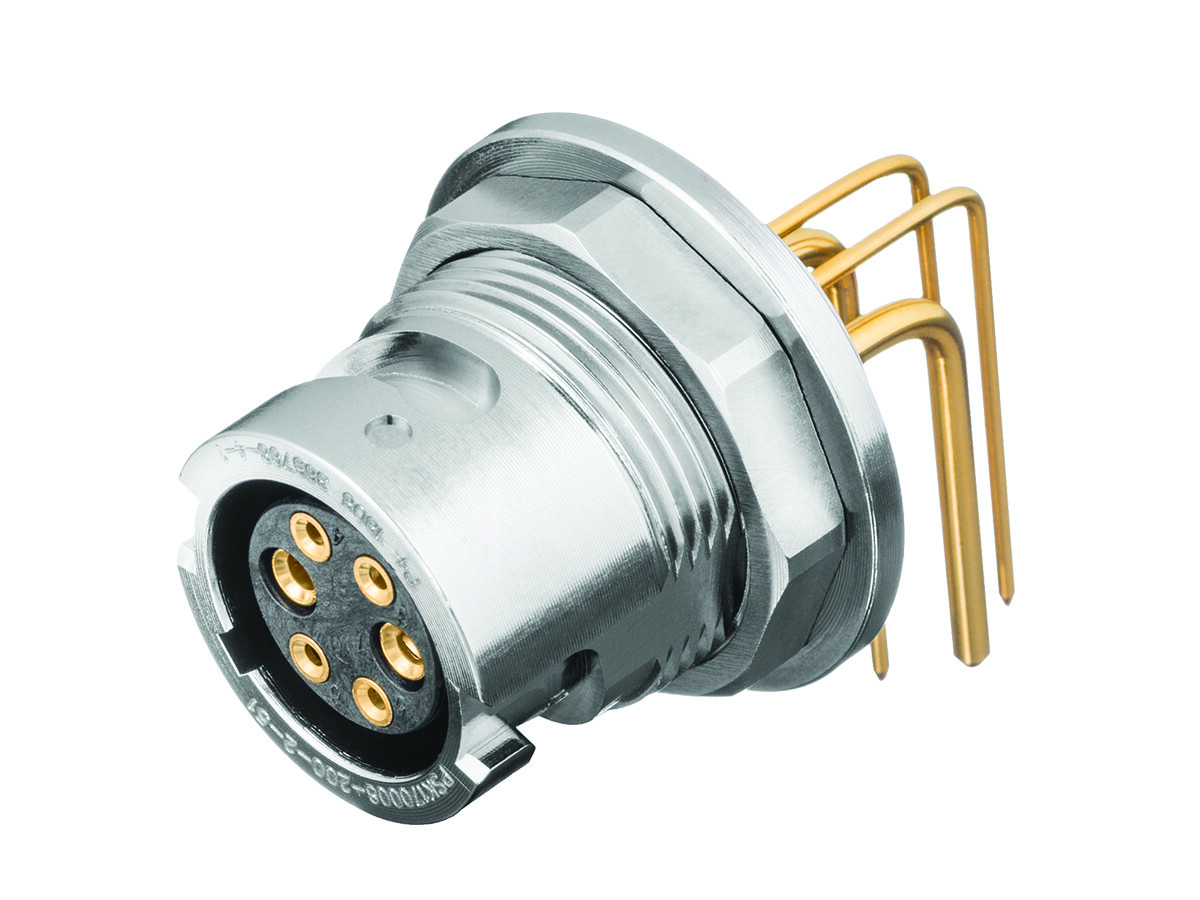

TB Series

It’s no secret the trend in electronics is to push more power and performance through smaller and smaller spaces. This is where the Talon Mini is most potent.
Its miniature size coupled with its hybrid inserts allows the user to push the limits.

Trust the Talon Mini to deliver The Science of Certainty
in mission-critical applications.



Your Part Number

Total length: 0mm Image shown is face view of male connector

General

Part Number PrefixTB
Performance LevelMil/Aero

Materials

Housing MaterialAluminum
Housing PlatingElectroless nickel
Insulator MaterialLCP (halogen-free)
Insulator ColorBlack
Flammability RatingUL 94V-0
Smoke and ToxicityFAE 25-853(a), FAR 25-855(d)
Contact MaterialCopper Alloy
Contact PlatingGold flash, 0.76µm Au, 1.27µm Au

Electrical

Initial Contact Resistance (mΩ, max)Power: 3, Signal: 5
Contact Current Rating at 30ºC Temperature RisePower: 14A, Signal: 3A

Mechanical

ShapeCircular
Polarization MethodInsulator
Contact StyleFixed, Removable
Contact Size#22
Female Contact DesignClosed entry
Contact TerminationWire, PCB
Mating Cycles500

Environmental

Temperature Range (ºC)-55 to 125
WaterproofIP65 (For use with cable-to-cable only, requires overmolding or shrink tubing)
