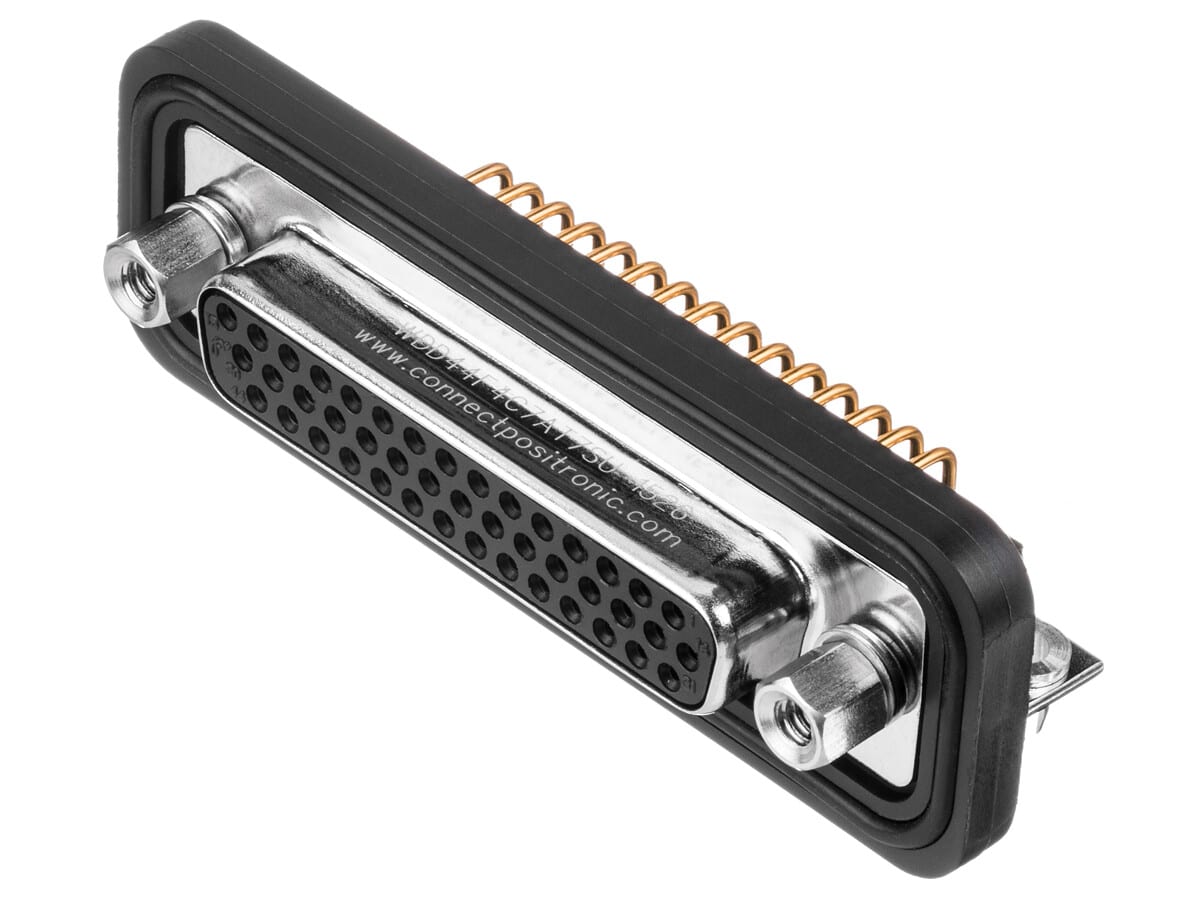

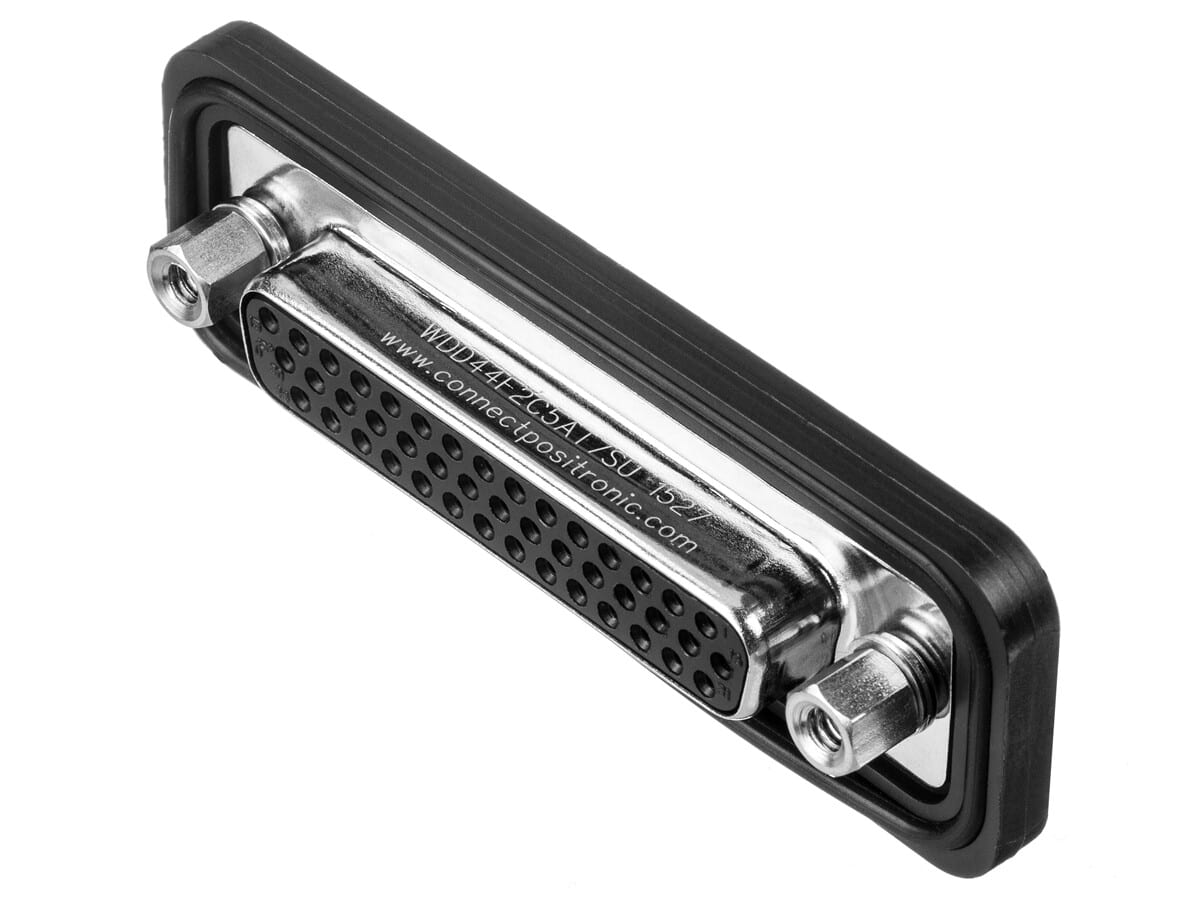

WDD Series - Positronic The Science of Certainty

Loading...

Your Part Number

Total length: 0mm Image shown is face view of male connector

Show Expanded Options

General
Part Number Prefix	WDD
Performance Level	Industrial
Qualifications	UL #E49351, CSA #LR54213
RoHS Compliance	RoHS 5/6

Materials
Insulator Material	Nylon
Insulator Color	Black
Flammability Rating	UL 94V-0
Contact Plating	Gold flash, 0.76µm Au, 1.27µm Au
Shell Material	Steel, Stainless steel

Electrical
Insulator Resistance (GΩ)	5.0
Proof Voltage (V rms)	1000
Working Voltage (V rms)	300
Initial Contact Resistance (mΩ, max)	10
Contact Current Rating (A)	5

Mechanical
Shape	Rectangular
Body Style	Panel mount
Insulator Construction	One-piece
Polarization Method	Trapezoidal shape
Locking System	Mandatory
Clearance and Creepage (mm min)	1.00
Contact Style	Fixed
Contact Size	#22
Female Contact Design	Open entry
Contact Retention Mechanism	Press-in
Contact Retention (N)	27
Contact Termination	Wire, PCB
Mating Cycles	500

Environmental
Temperature Range (ºC)	-40 to 125
Waterproof	1
